WHAT PRODUCTS WE LOVE WORKING WITH
AliClad: Aluminium Weatherboards
Alucobond Plus
Wood Composite Cladding Innoclad / Innowood
Alucolux Solid
Frontek
Equitone – HD Fibre Cement Cladding
Composite Timber Ceilings – Innoceil / Inowood
Indurabond
Induracore G2
Induraplate
Advanced Technology Walling System
Cladding Components
Silicon
Stryum

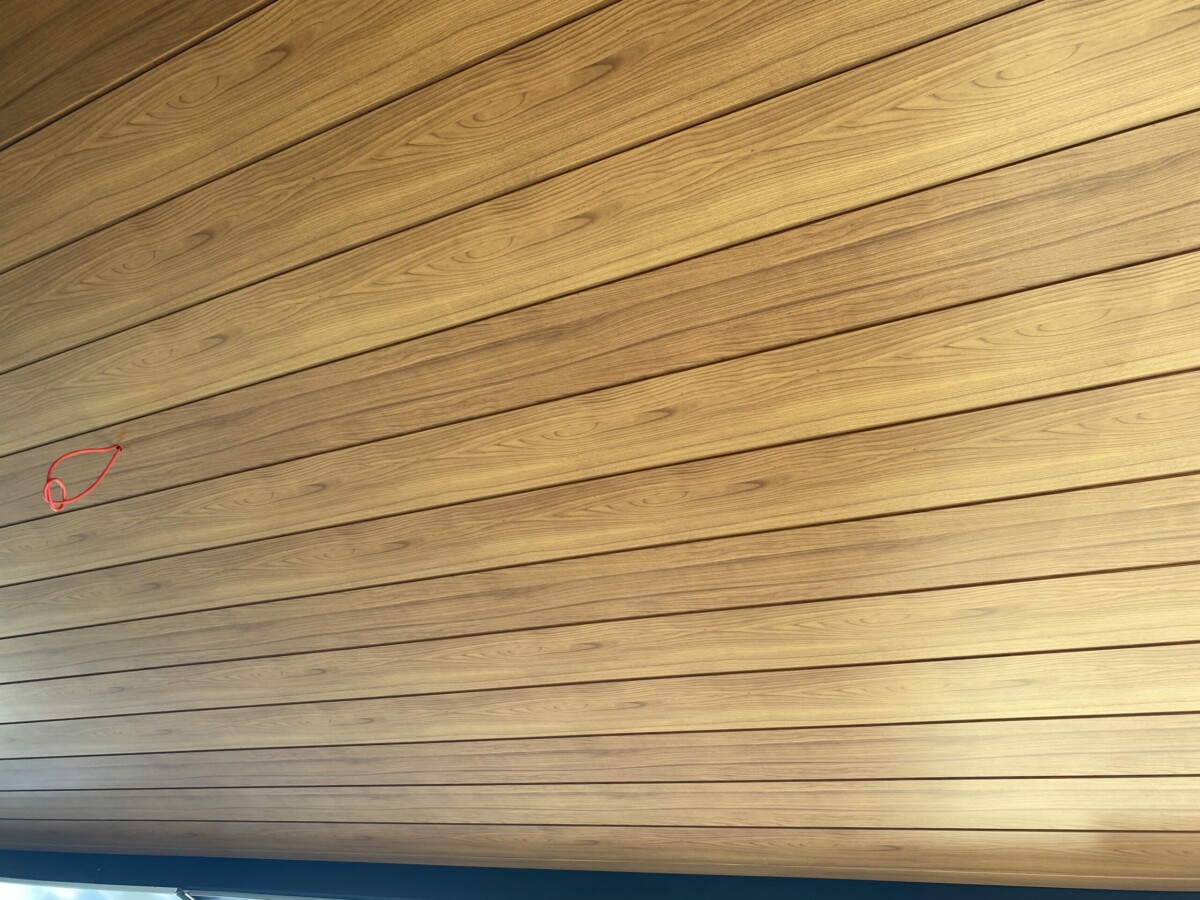

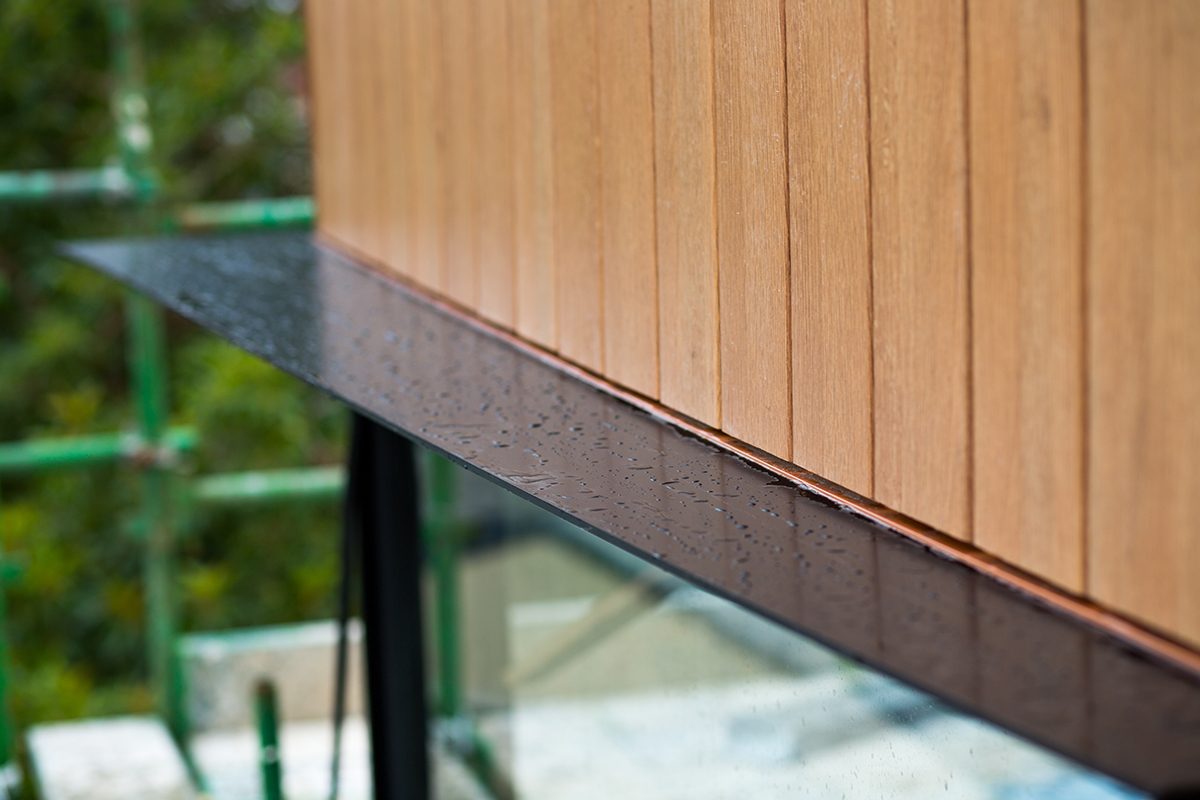

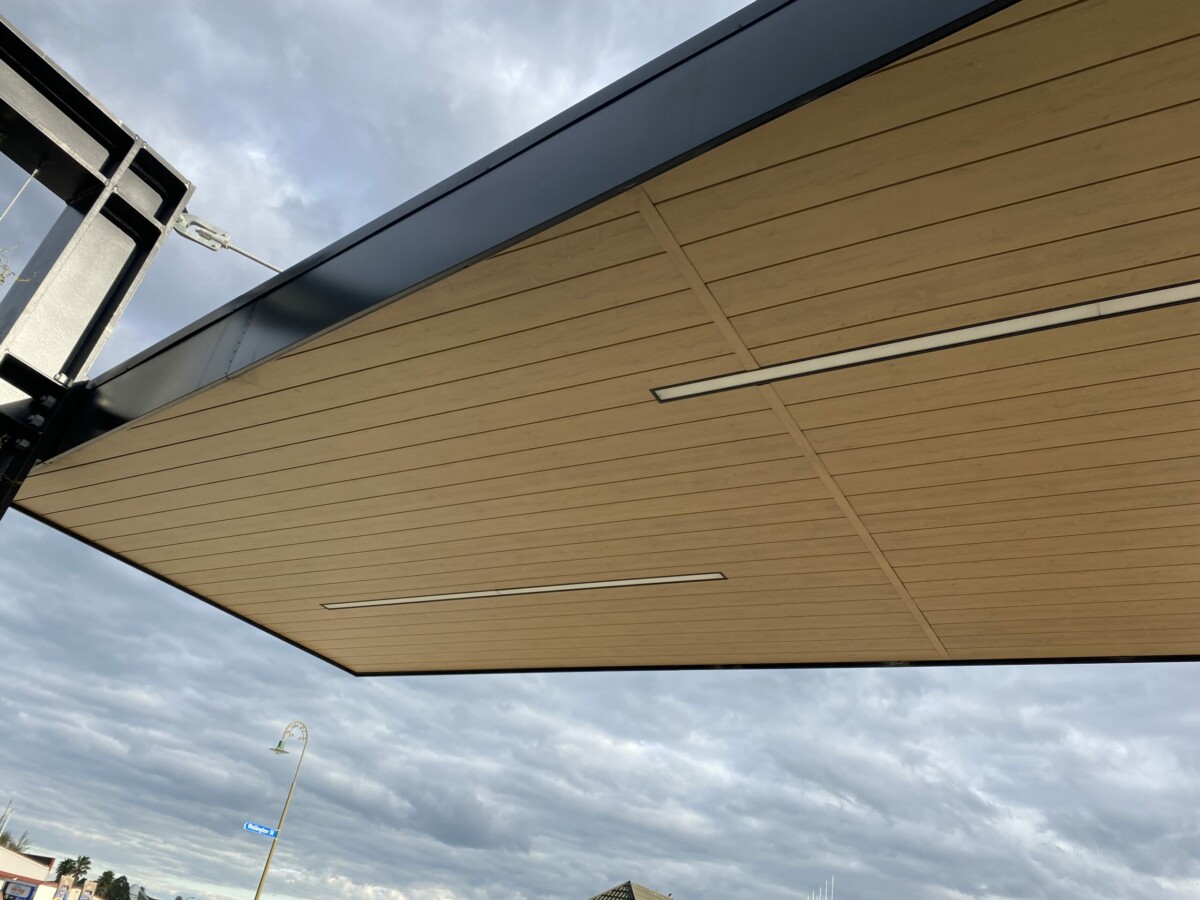

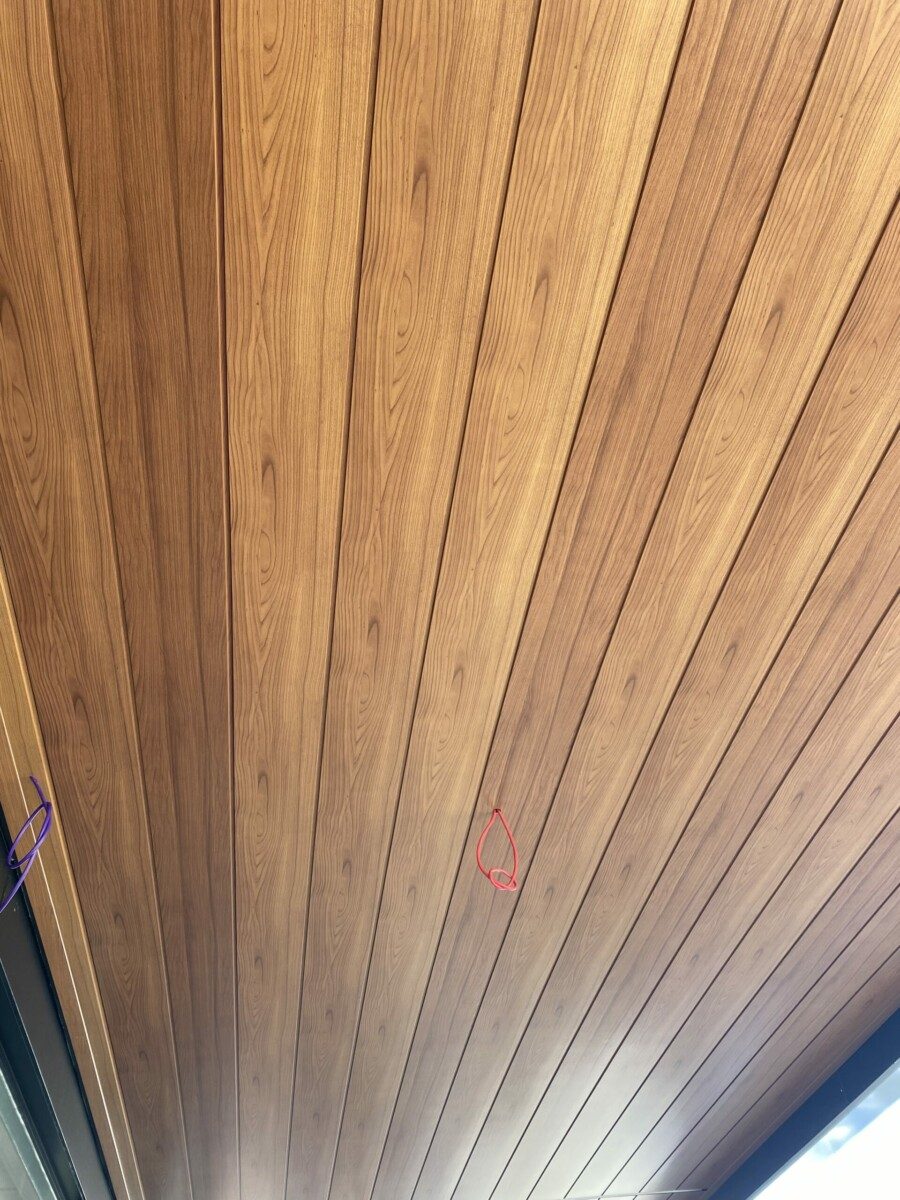

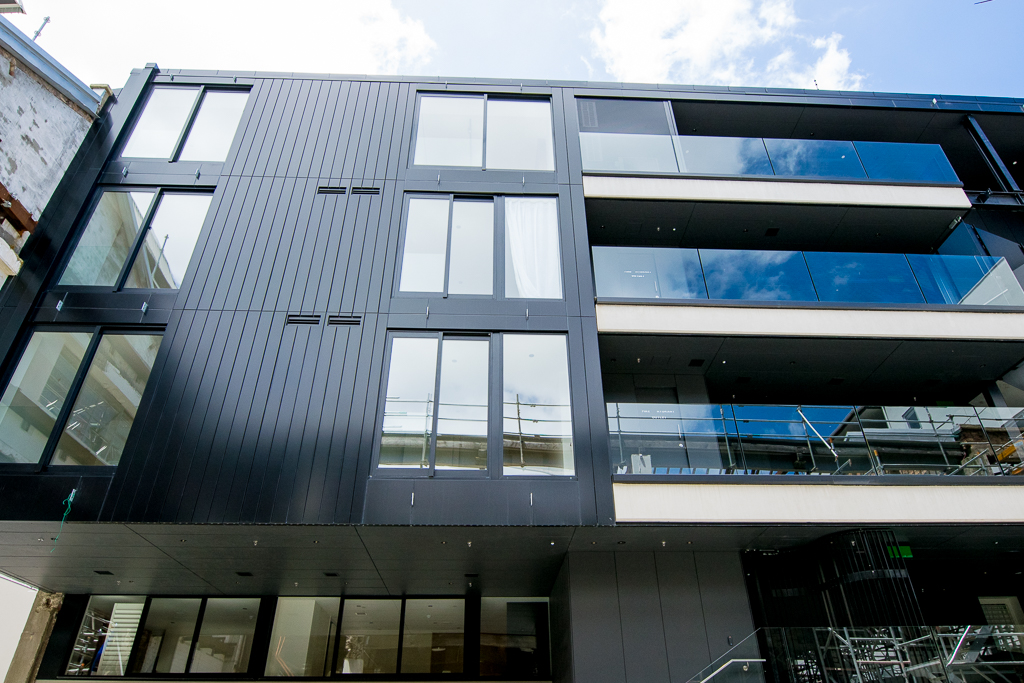

AliClad – Aluminium Weatherboards
PREMIUM ALUMINIUM WEATHERBOARDS DESIGNED IN NEW ZEALAND
INTRODUCING ALICLAD
Performance and aesthetics combine in a contemporary aluminium cladding system. Designed in New Zealand for local conditions.
Our tough climate calls for exterior products that can perform in all weather conditions, meet the most stringent code and standards, and bring elegance and architectural integrity. Available in a multitude of colours, finishes and even woodgrain.

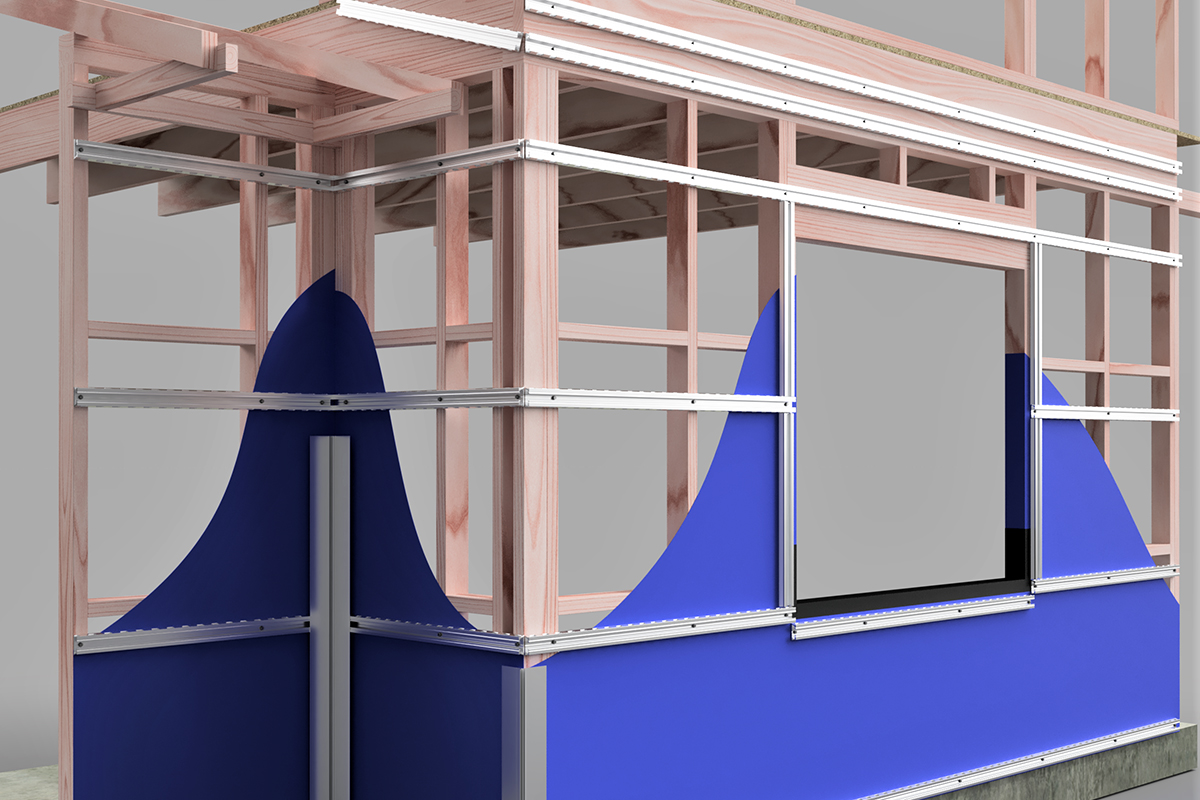

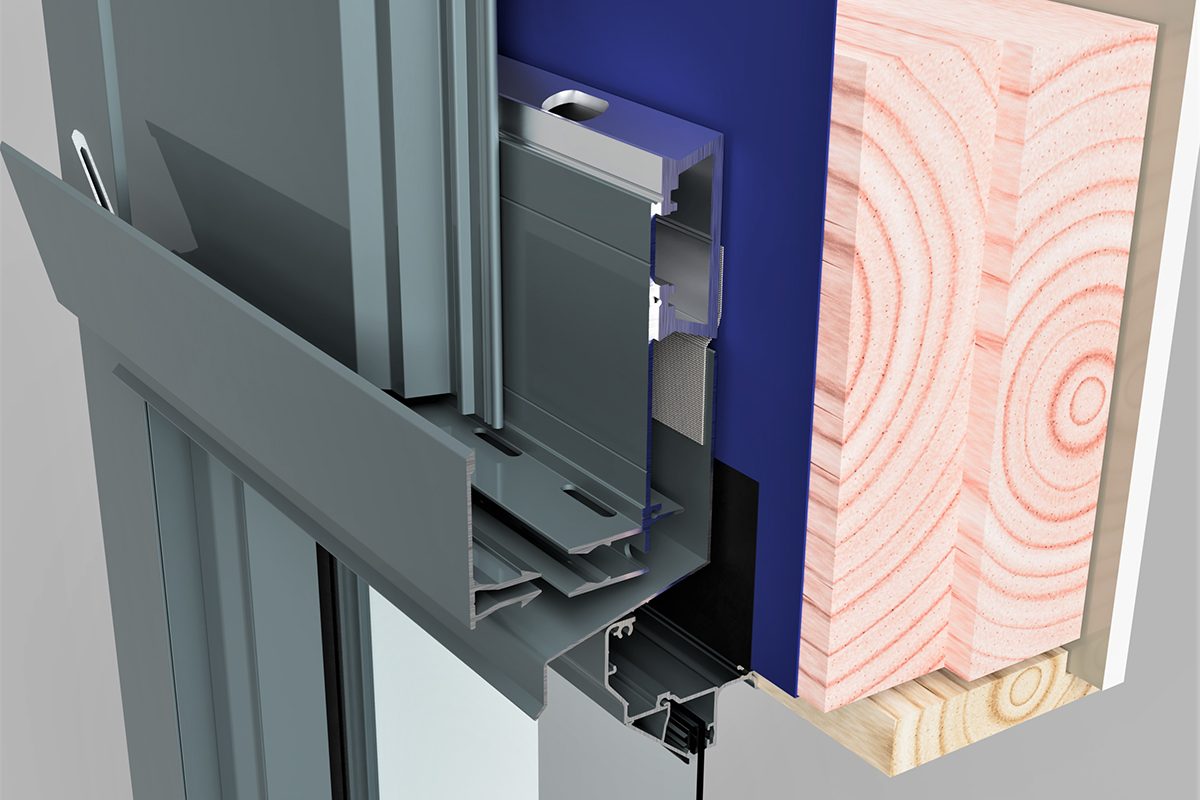

AliClad, designed by The Building Agency, is a premium aluminium weatherboard system that has had every detail and feature designed, tuned and resolved. Backed by decades of local experience and international product knowledge, AliClad offers architects, builders and developers a robust and beautifully finished product, supported on an easy-to-install fixing system engineered to perform.
Designed for large-scale commercial projects with a residential application.
DESIGNED FOR:
WEATHER-TIGHTNESS: The system has been designed in line with NZBC Acceptable Solutions. It has been tested to be compliant with E2:VM1 and NZS4284.
STRUCTURE: The AliClad system is designed for very high wind loadings and engineered to be fixed at maximum span distances for reduced project costs.
FIRE PROTECTION: Aluminium is non-combustible under the NZBC and the support system has a limited / non-combustible wall assembly and has been tested for full-scale system fire performance to BS8414.
FINISH AND AESTHETICS: Flat and matt powdercoat options, anodised-look paint finishes, sublimated woodgrains, and horizontal and vertical profile alignments achieve both classic and contemporary designs.
For more details and a brochure, please visit here.

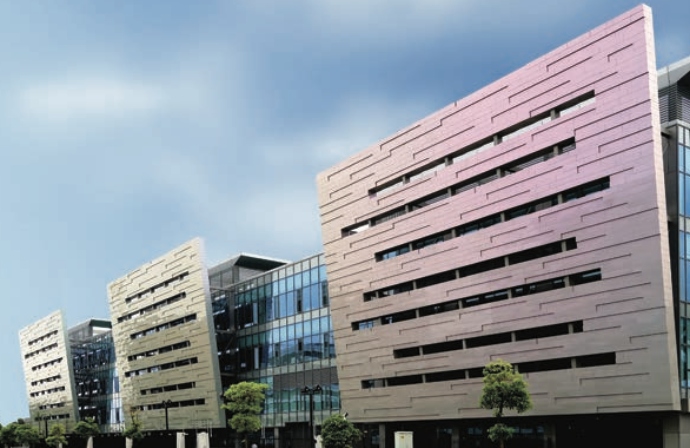

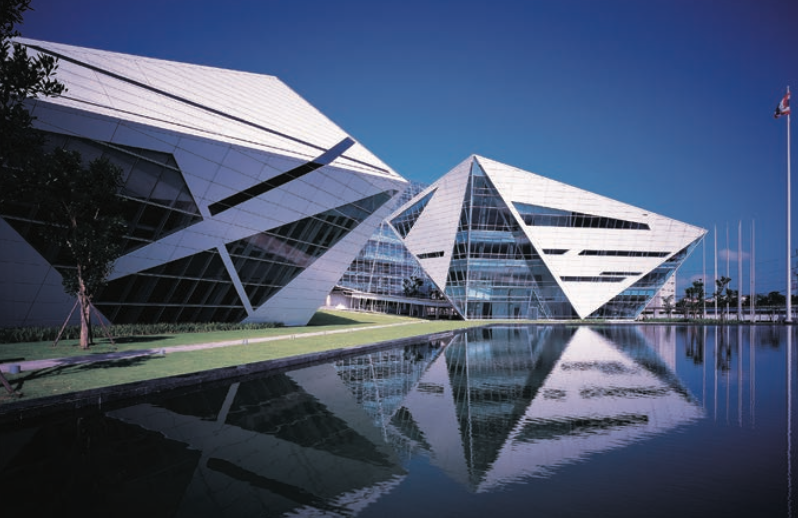

Alucobond Plus
The aluminium composite panel with a fire-retardant mineral filled core.
ALUCOBOND PLUS, its dynamic range of colours, formability and weather-resistance allows for complete freedom and creativity for design. It has been developed as a rigid and, at the same time, flexible fascia material for architecture.

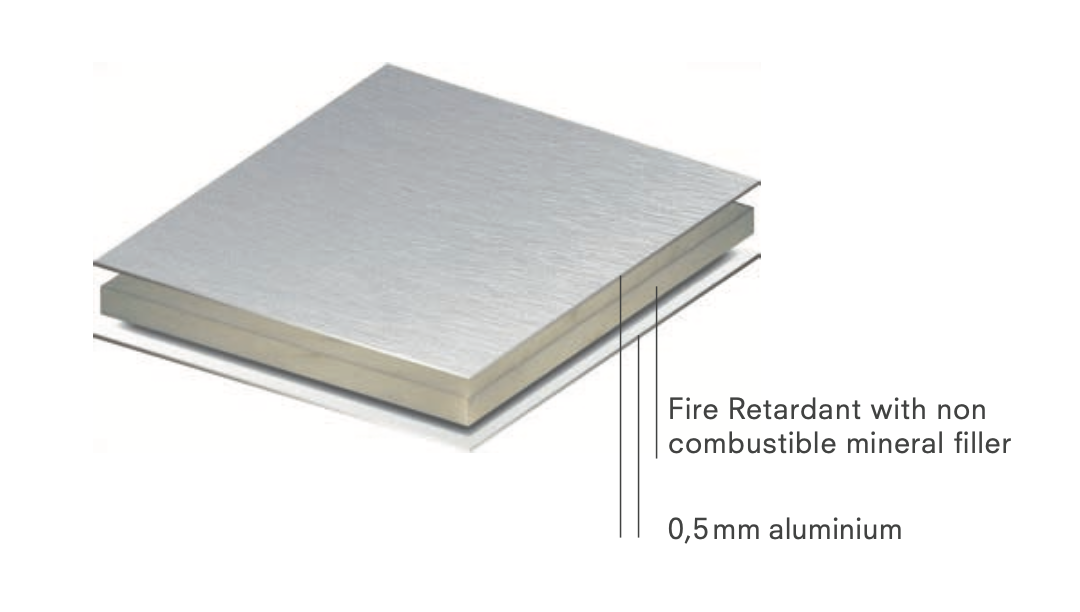

ALUCOBOND PLUS consists of two aluminium coversheets and mineral-filled core. The unsurpassed finish and flatness of
ALUCOBOND plus has been developed exclusively for the more stringent requirements of the fire prevention regulations in architectural products. Thanks to its mineral-filled core ALUCOBOND plus meets the stricter requirements of the fire-classifications.

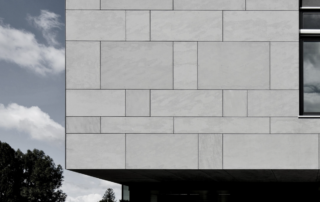

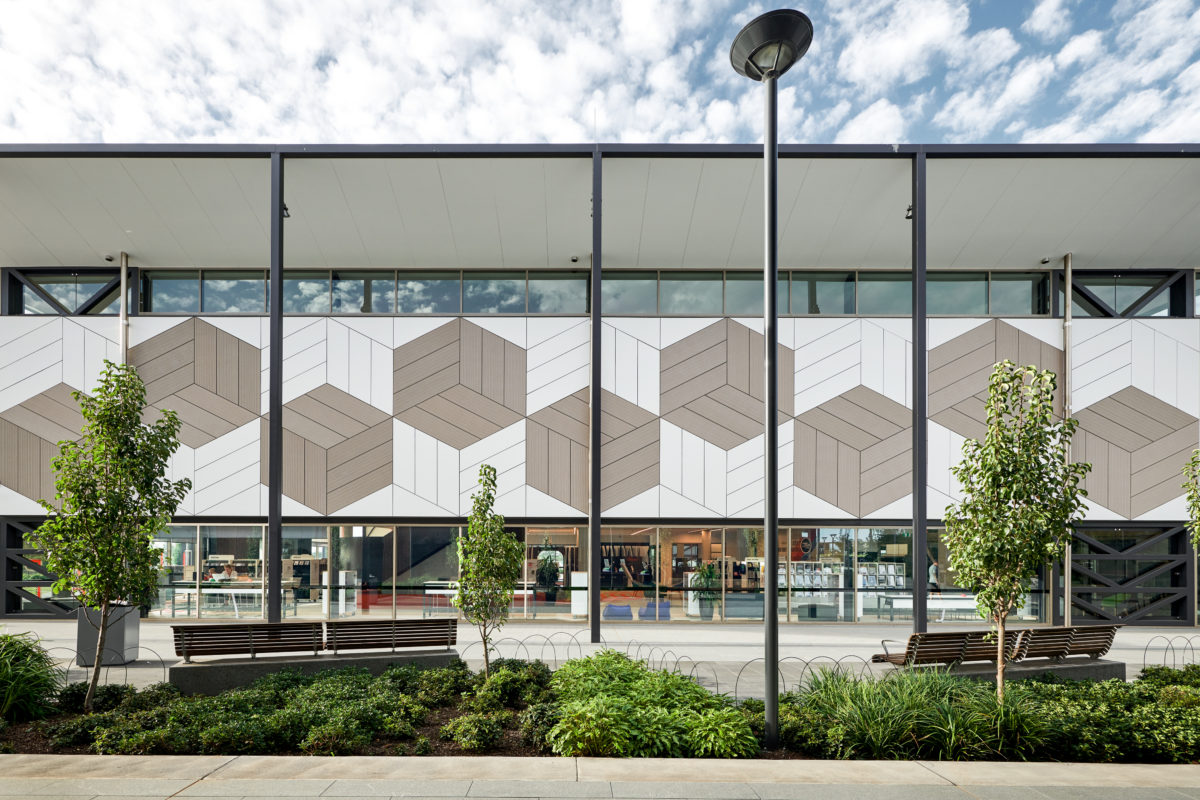

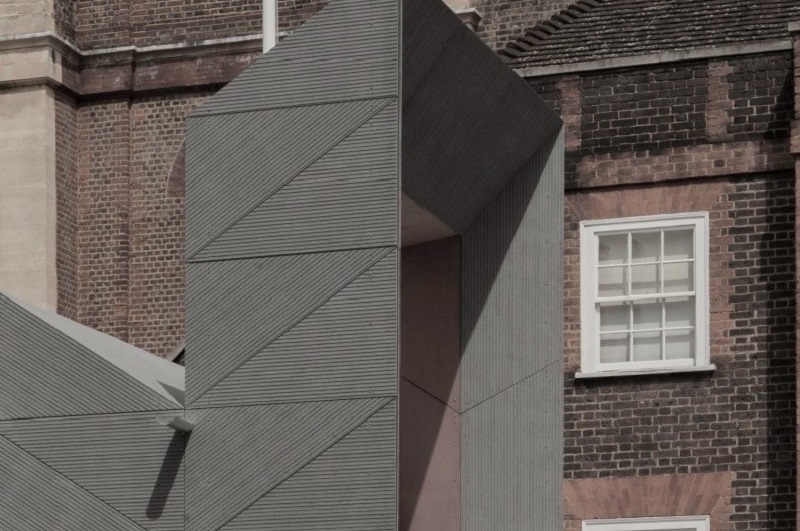

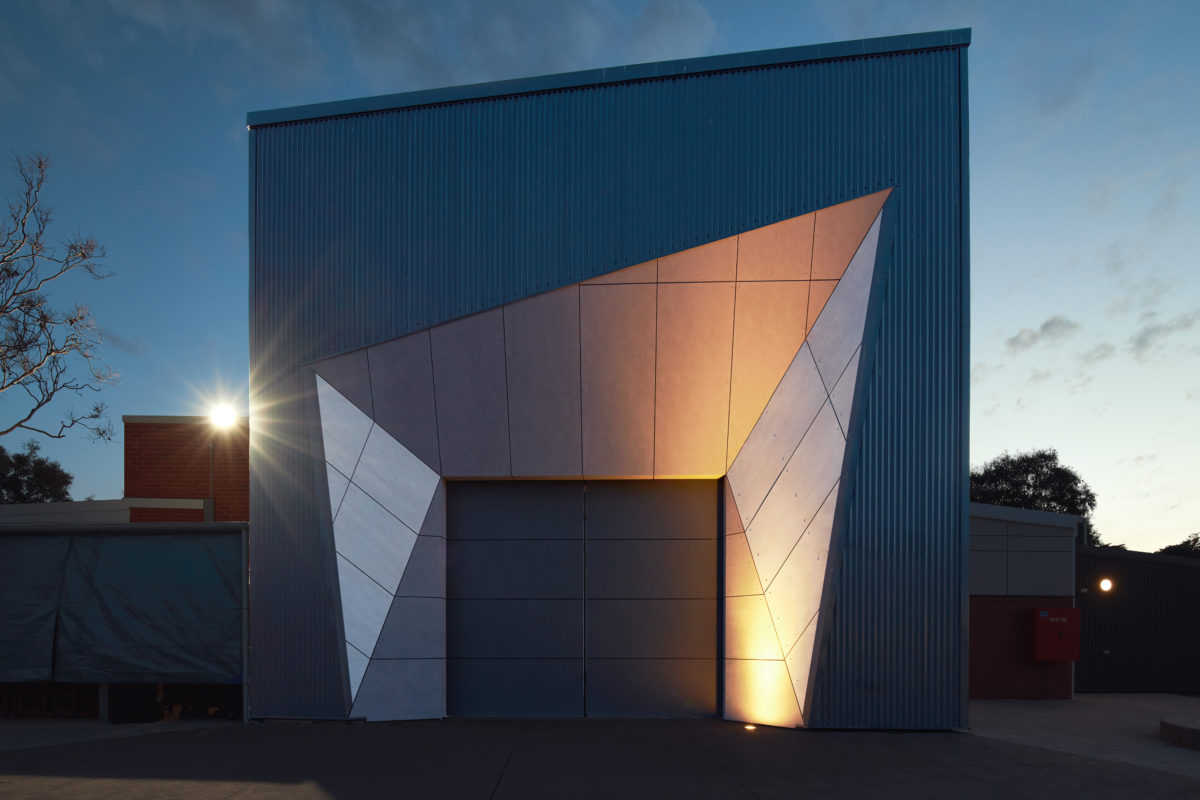

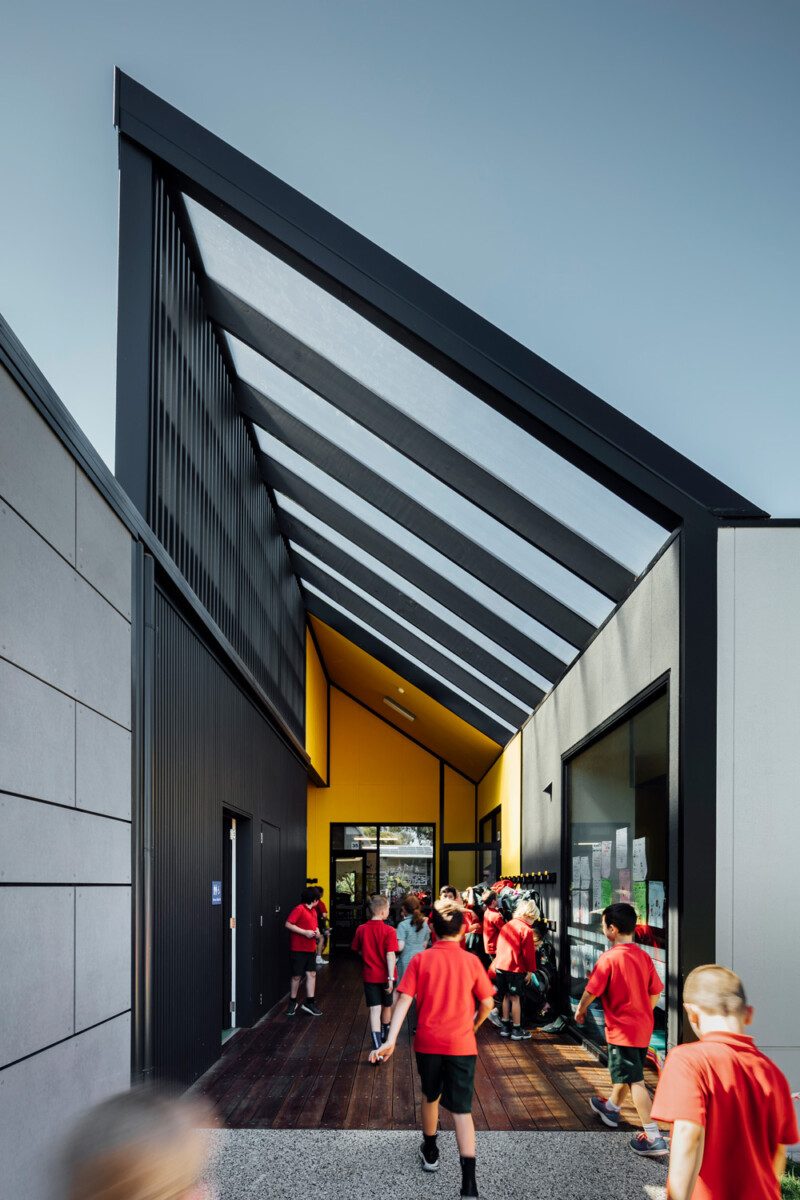

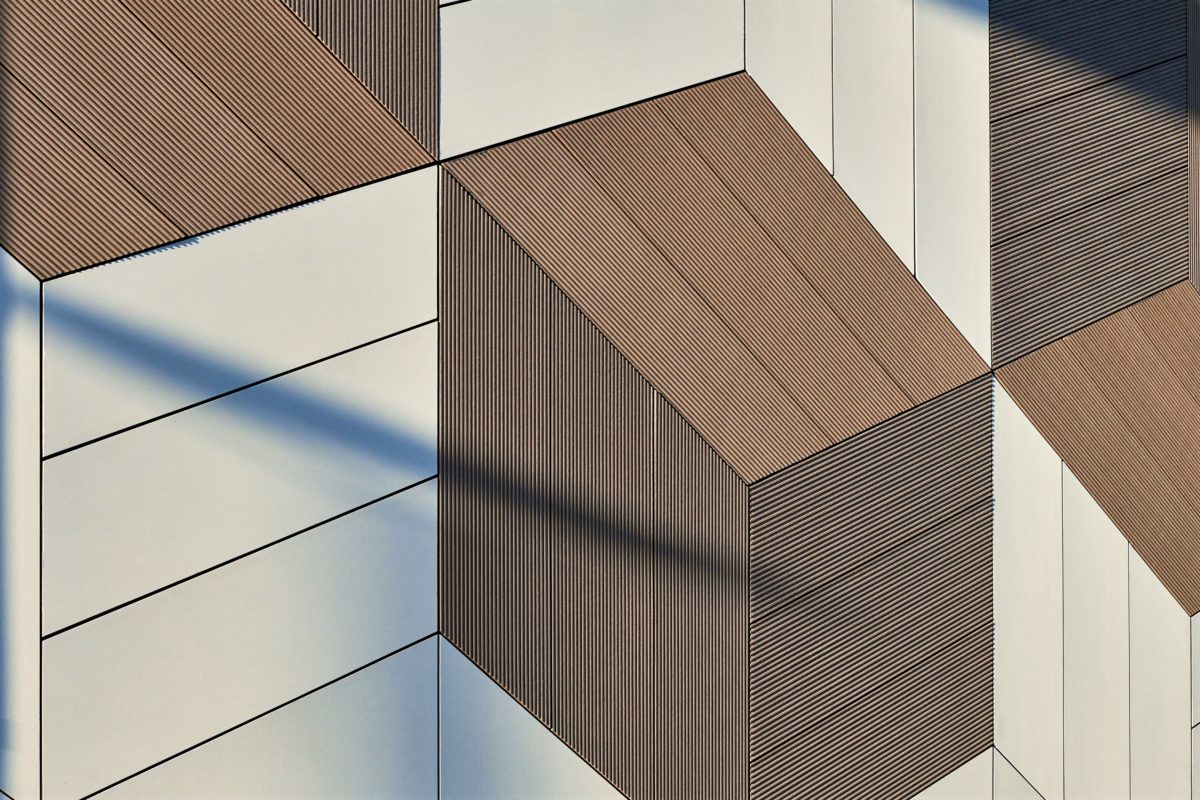

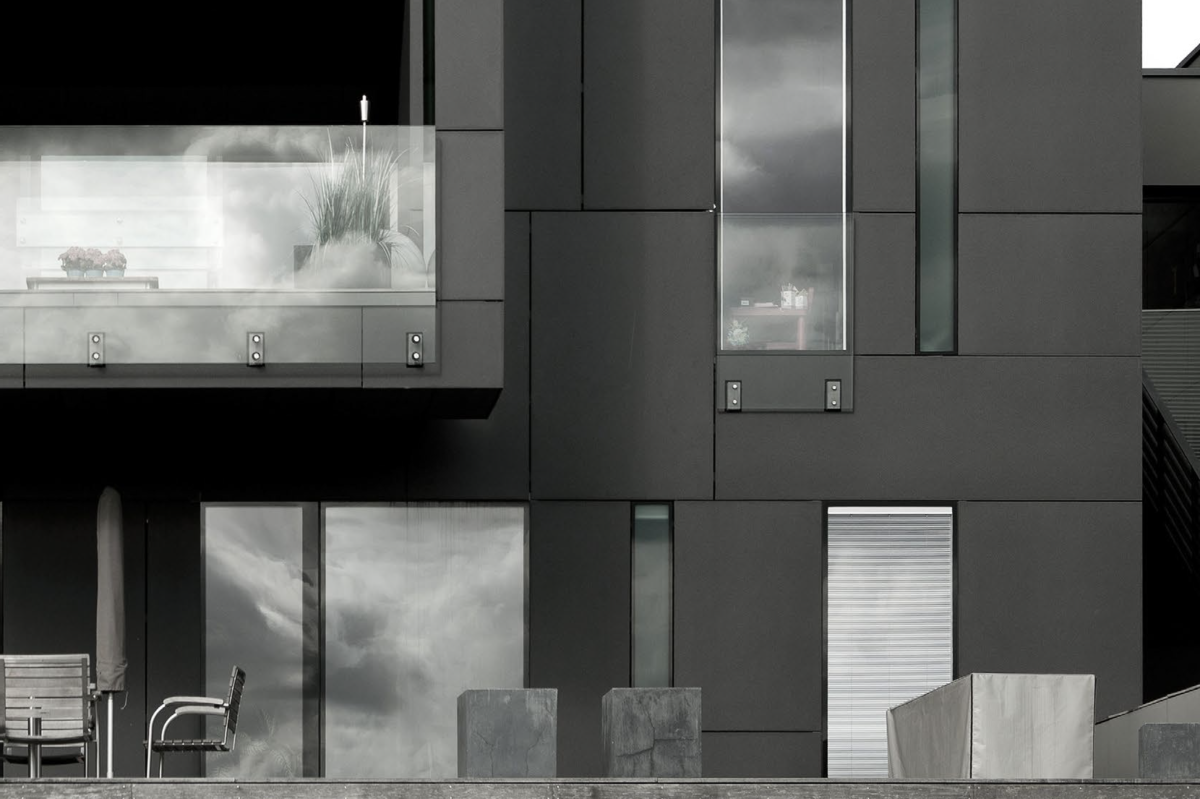

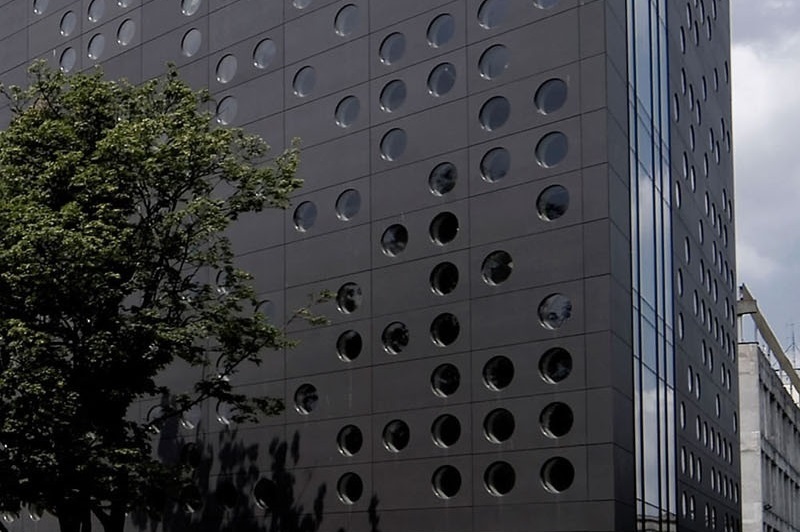

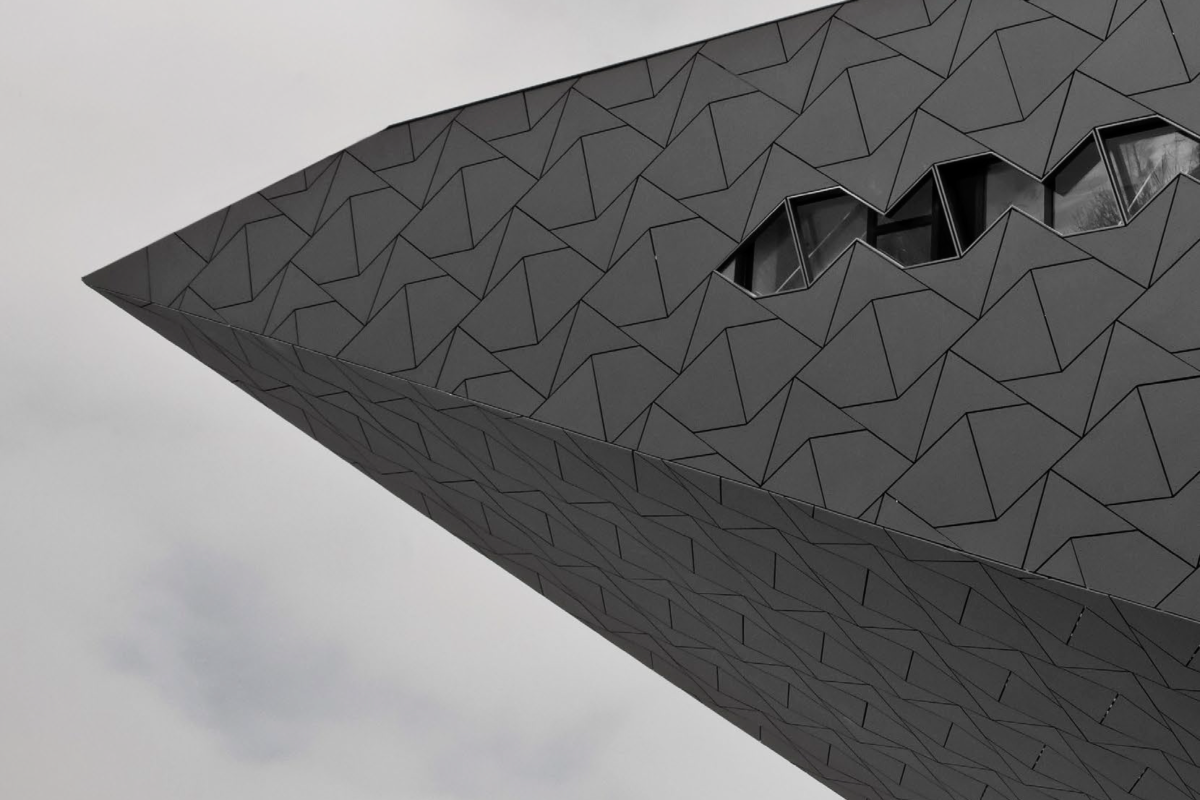

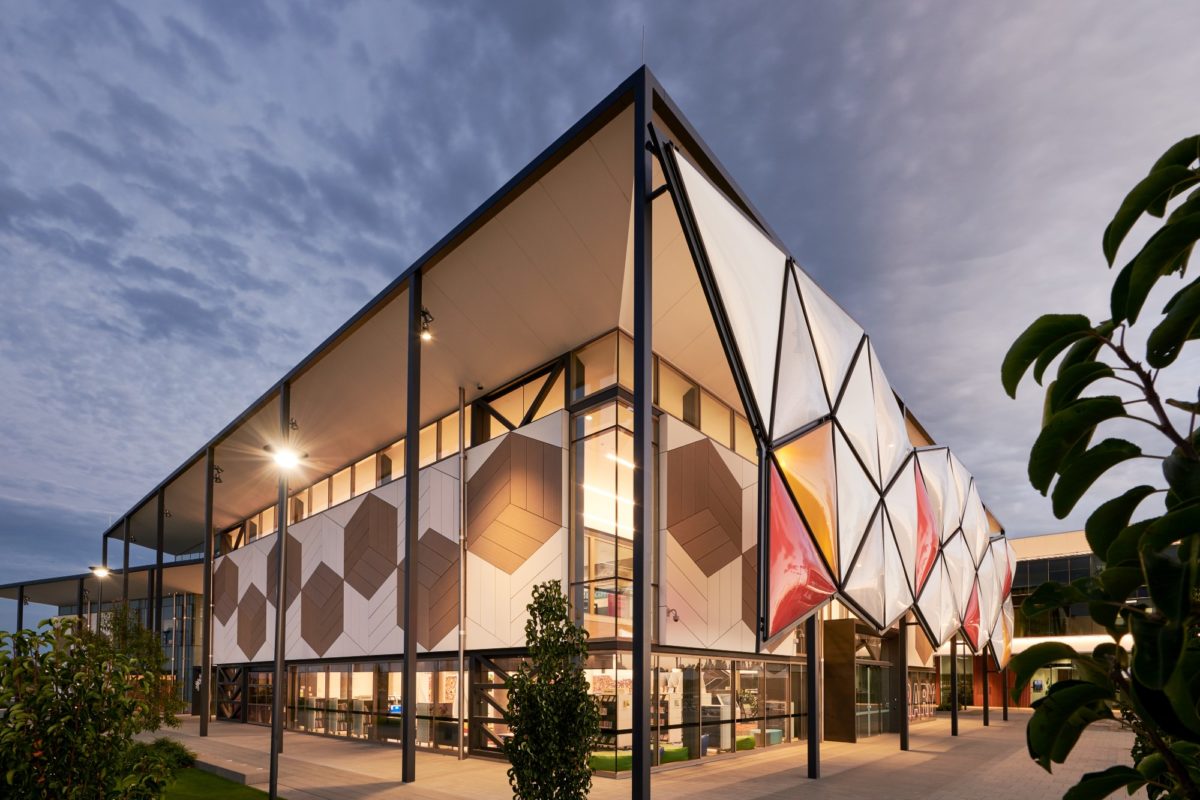

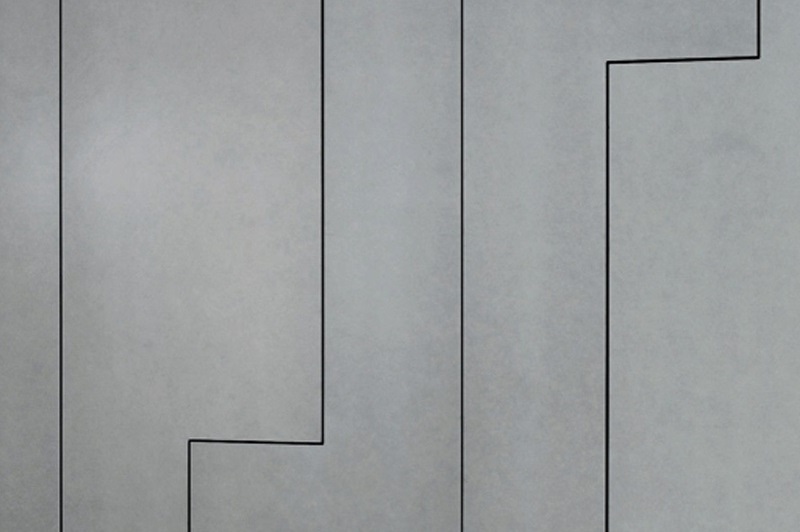

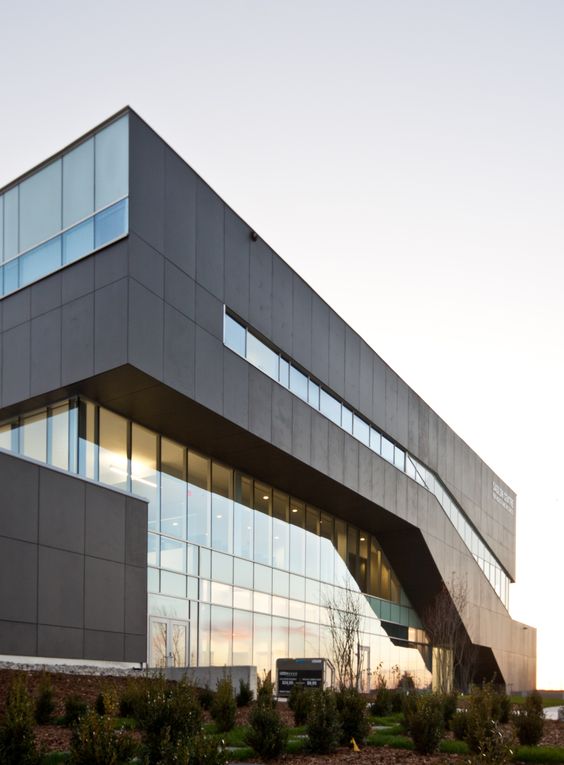

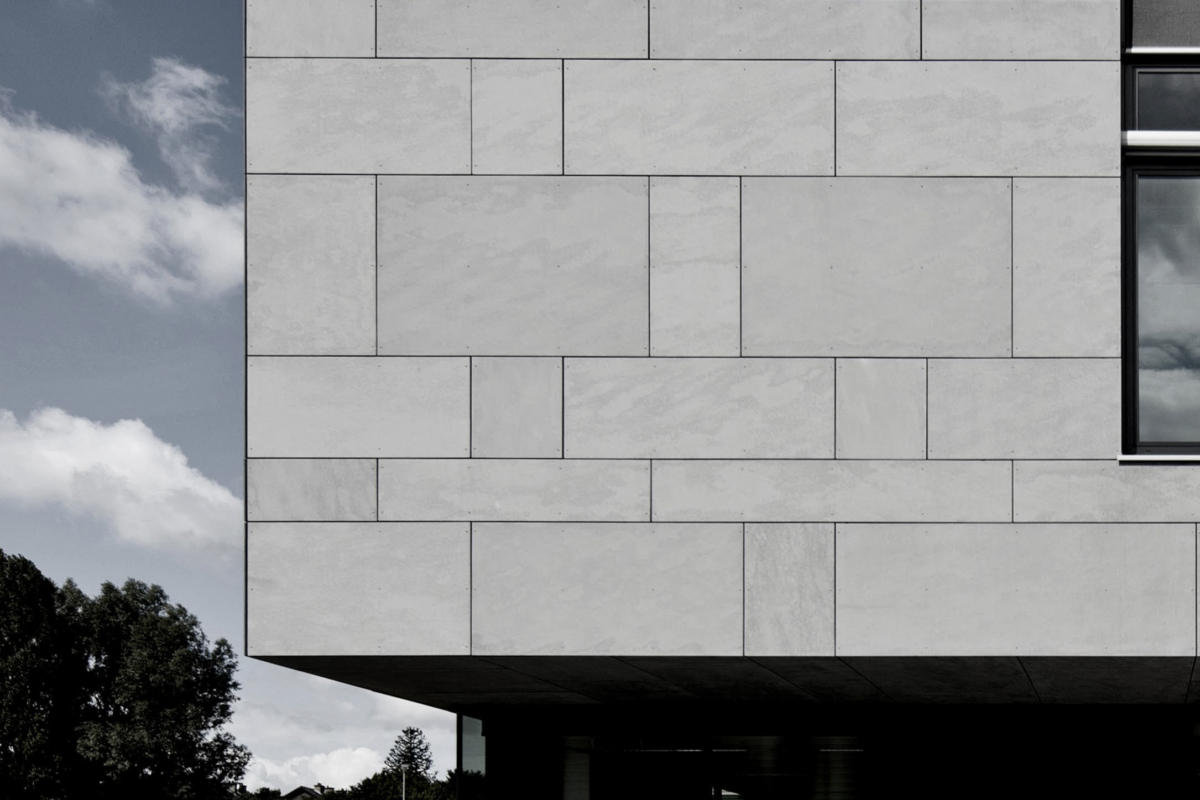

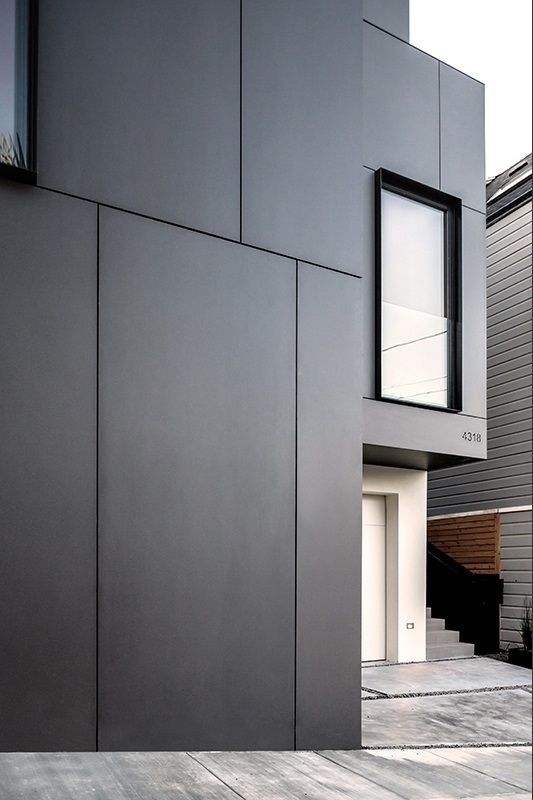

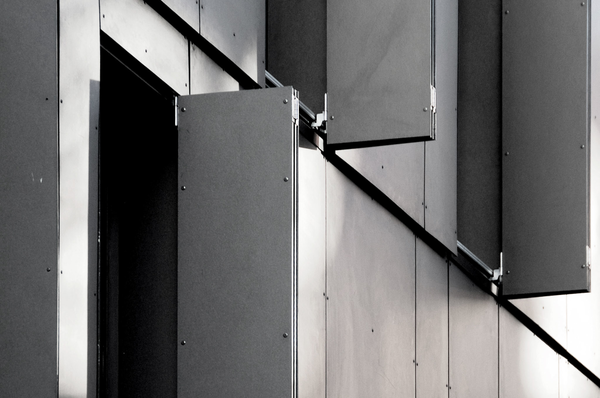

Equitone – HD Fibre Cement Cladding
EQUITONE® Fibre cement is a mineral composite material with outstanding aesthetic and physical properties designed as cladding by and for architects.

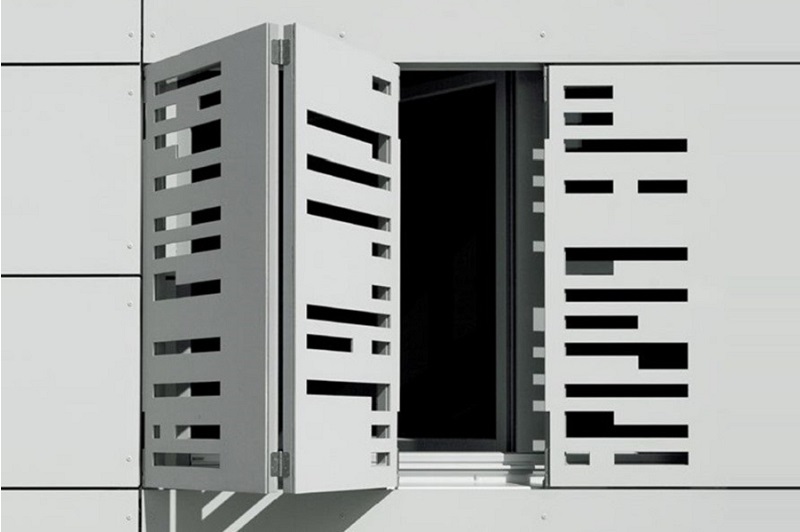

Every EQUITONE® panel is unique, showing the raw, untreated texture of the fibre cement base material. The fibre cement material is through-coloured, which means the surface displays the inner texture and colour of the core cementous material. No matter what facade design options you explore, the through-coloured materials can be transformed into crisp, monolithic facade details. The material can be perforated using waterjet or CNC machines, large or very small cuts can be made, it can even be embossed and printed. Some designers have used it for interiors or furniture.
The EQUITONE® through-coloured materials enables you to achieve flawless intricate details.
- Fire Safe (Non-Combustible and no spread of flame)
- Resistant to extreme weather conditions and temperatures
- Integral “through colour”, no ongoing maintenance required
- Installed life expectancy of at least 50 years
- Resistant to vermin, insects, mould growth, fungi etc.
Fibre cement is a cement composite material that consists of cement, cellulose and mineral materials, reinforced by a visible matrix. Nothing Else.

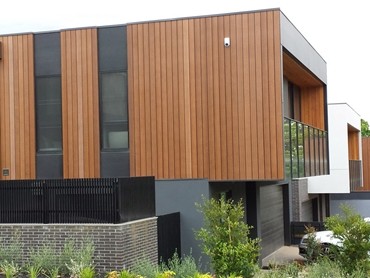

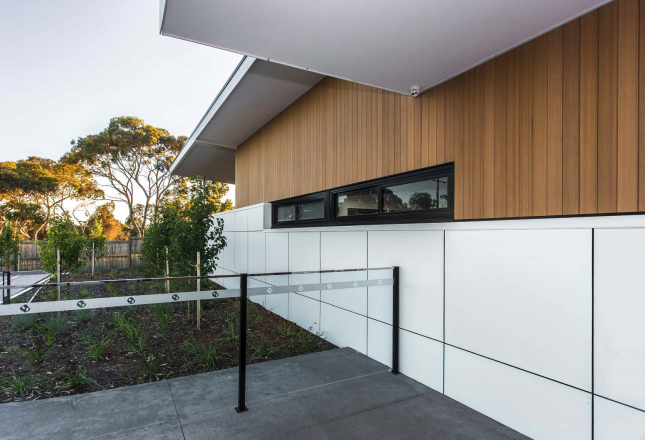

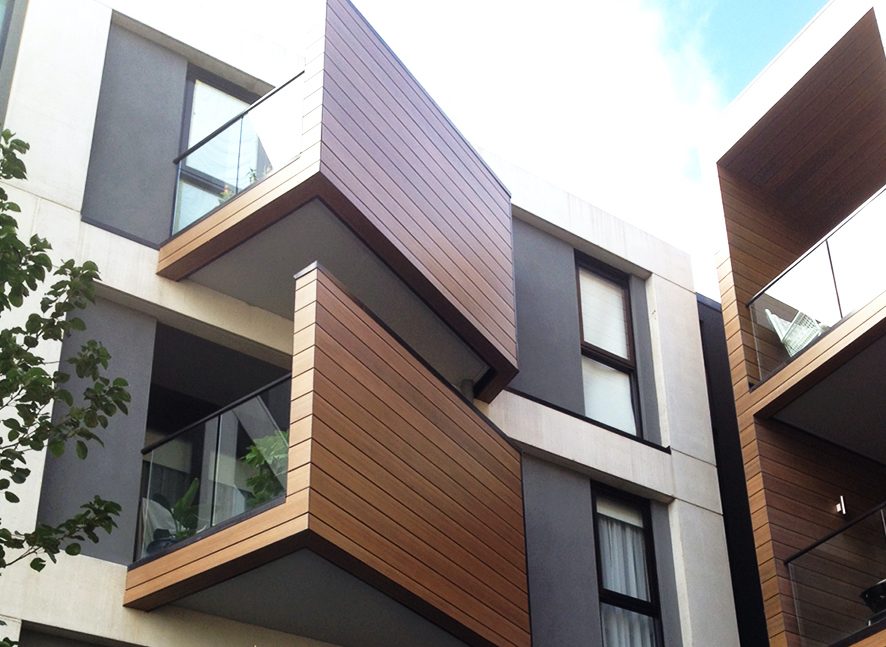

Wood Composite Cladding Innoclad / Innowood
INNOWOOD products represent the ideal alternative to natural timber. Manufactured predominantly from natural wood waste, our products help to prevent forest depletion through the sustainable use of recycled material and energy management.
INNOWOOD IS:
- 100% Recyclable.
- Durable and Lightweight.
- Fire Resistant.
- Flexible in Design.
- Exhibits the same natural beauty as natural timber.

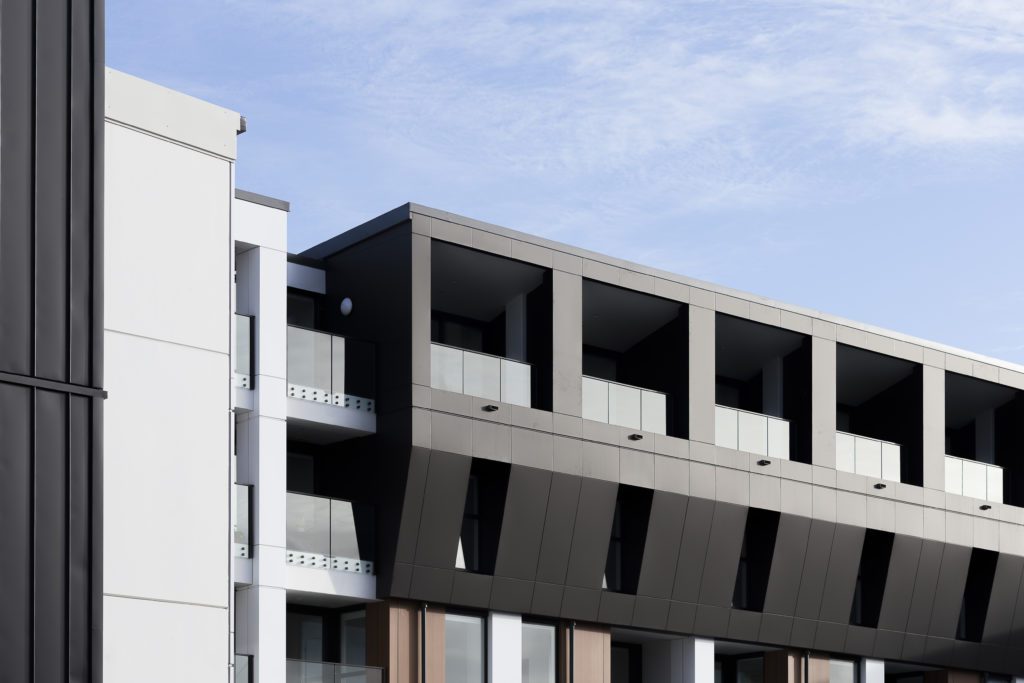

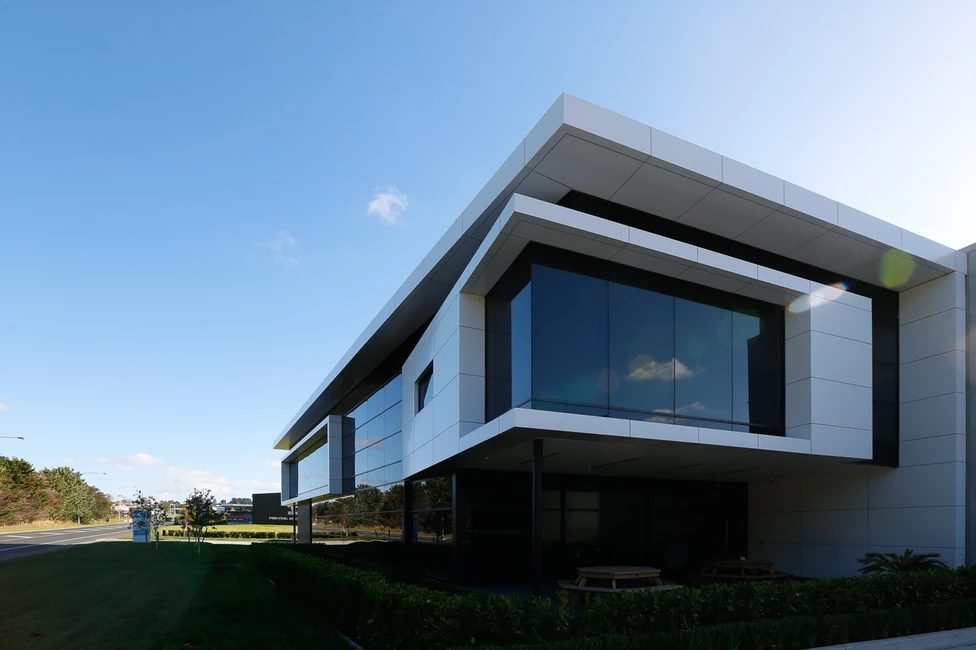

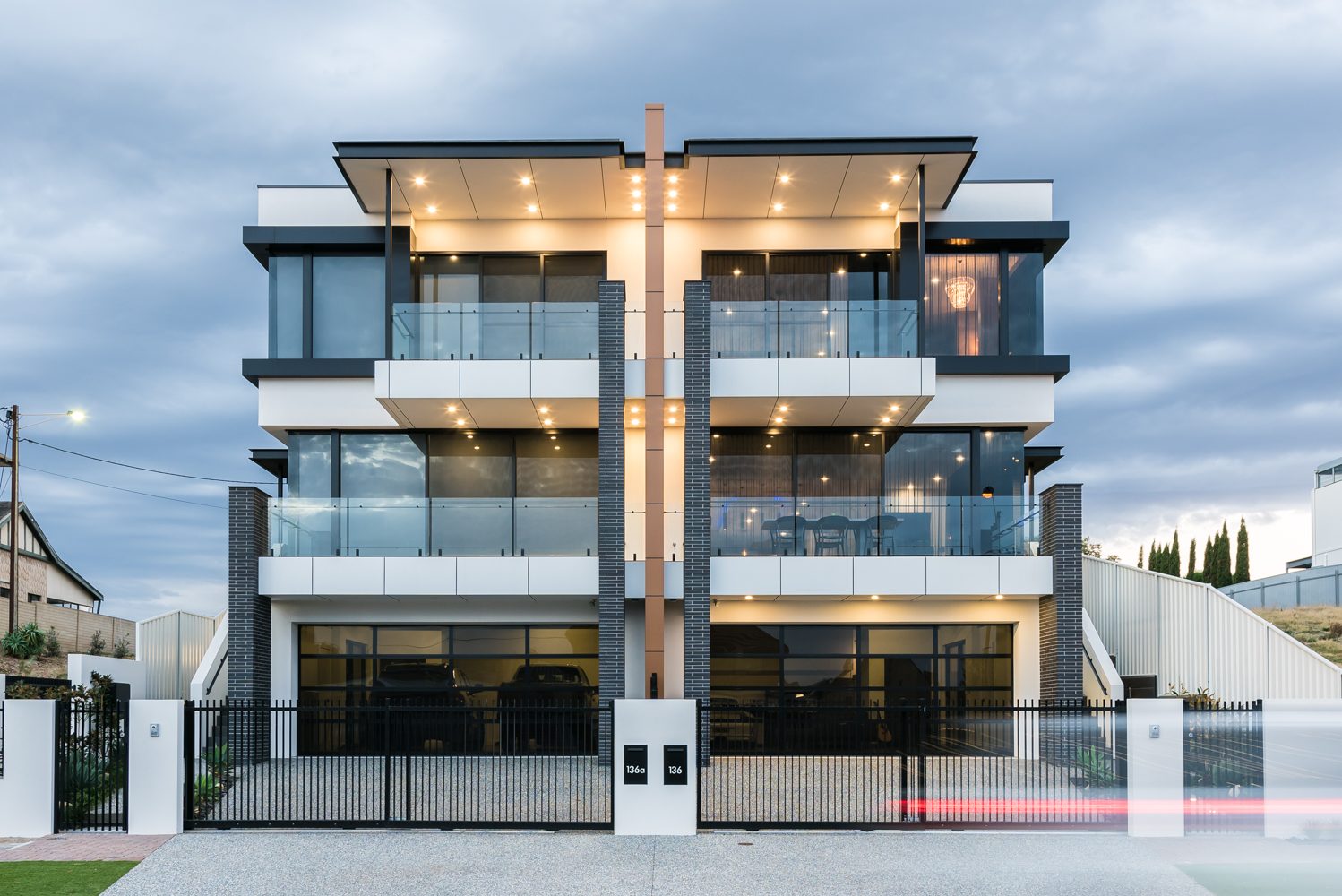

Alucolux Solid
3A Composites have used their vast experience with aluminium façade panels to develop Alucolux Solid Aluminium. This enhances our extensive range of high performance cladding solutions. Alucolux is a 3mm solid, coil coated aluminium sheet material for exterior cladding and interior linings. Alucolux is available in most of the same colours found in the Alucobond Plus range and is also available in embossed surfaces to liven up the Wood Look and Stone Look ranges.
Developed from the optimum marine grade aluminium, Alucolux is the perfect combination of temper and hardness. Architectural cladding applications require the correct combination of these properties to perform when exposed to wind loads and pressure. Alucolux provides a non-combustible cladding solution for compliance and safety with no complications. Deemed non-combustible and certified to AS1530.1.
Alucolux provides solutions for architects, designers, developers, builders and construction companies looking for a premium solid aluminium façade panel they can safely specify for commercial, educational, aged care and residential projects without compromising design. This compliments our range of Alucobond Plus, Alucobond A2and Alucore A2 resulting in superior performance across and price range.
Benefits
- 100% Non-combustible to AS1530.1.
- Custom sizes, colours and finishes.
- Guaranteed Premium PVDF finish.
- High quality marine grade aluminium specifically developed for architectural facades.
- Easy to fabricate.
Paint finish
ALUCOLUX solid aluminium panel is available as an in-house pre-finished panel with a fluorocarbon PVDF coating applied through a reverse roller coating process. The coating is backed up through a valid and approved license from the paint supplier to the manufacturer. The standard three coat system consists of a chromate conversation coating, an inhibitive primer, with a colour and top coat containing not less than 70% PolyvinylideneFluoride (PVDF) resin by weight, and a total dry film thickness between 28-45microns. This system provides a long lasting premium finish. It also allows for a vast range on innovative finishes.

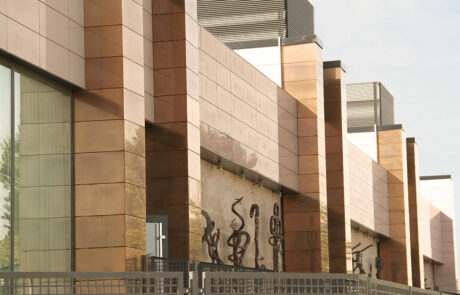

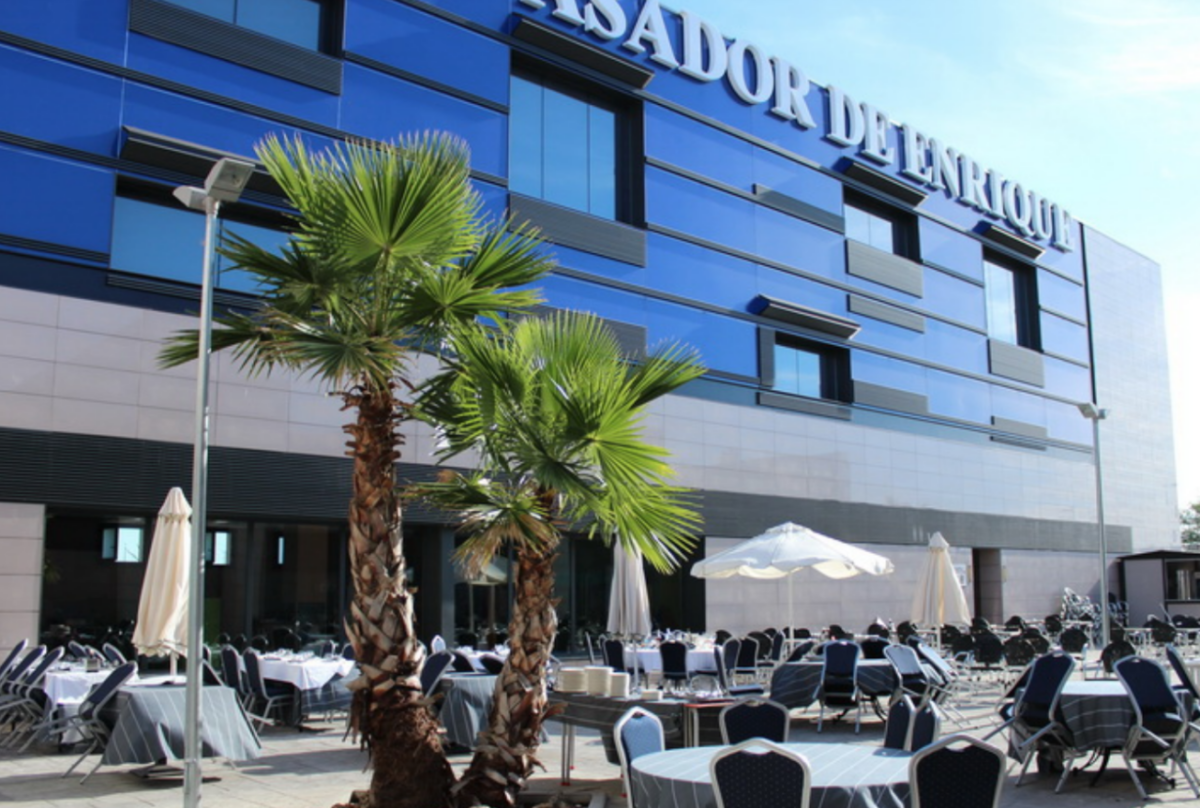

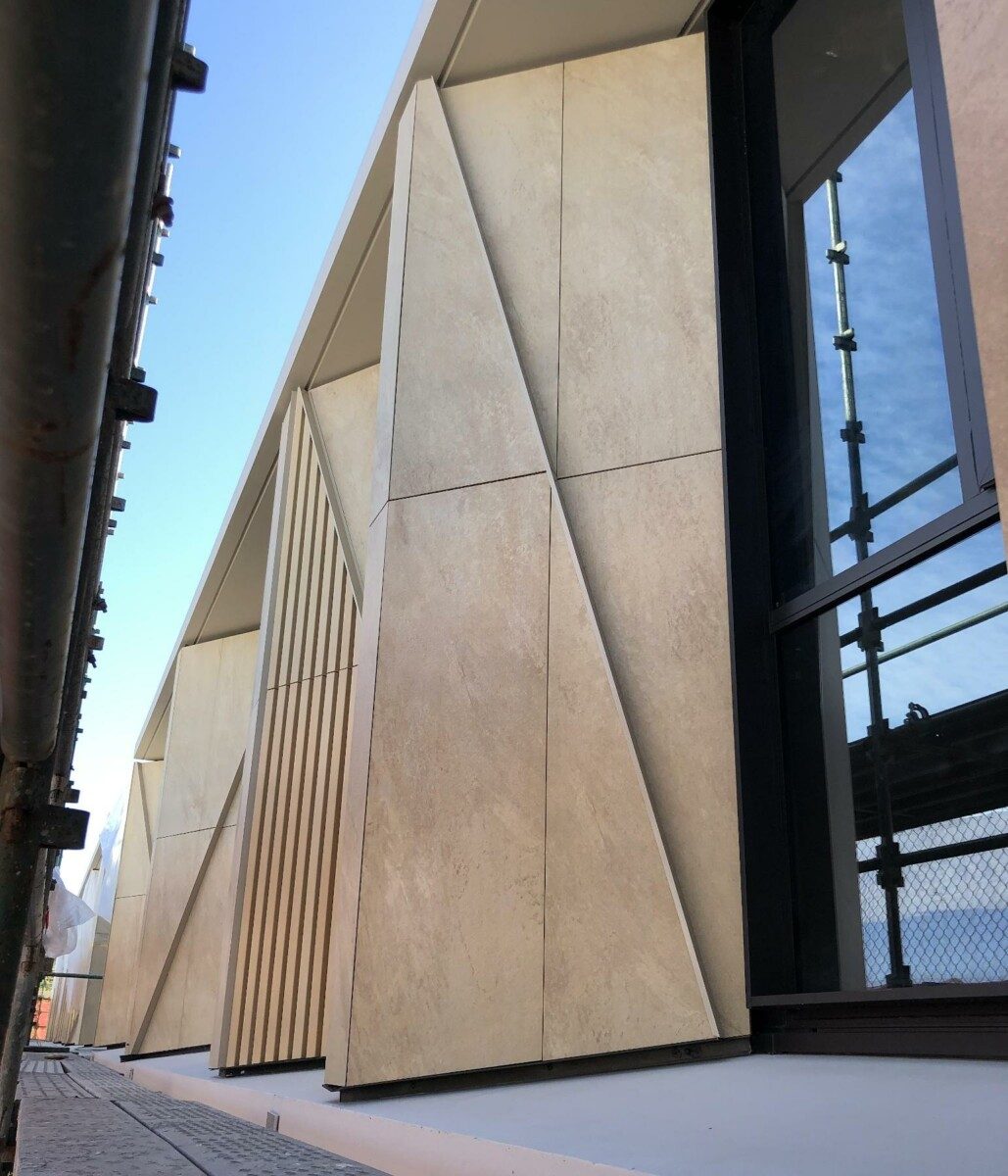

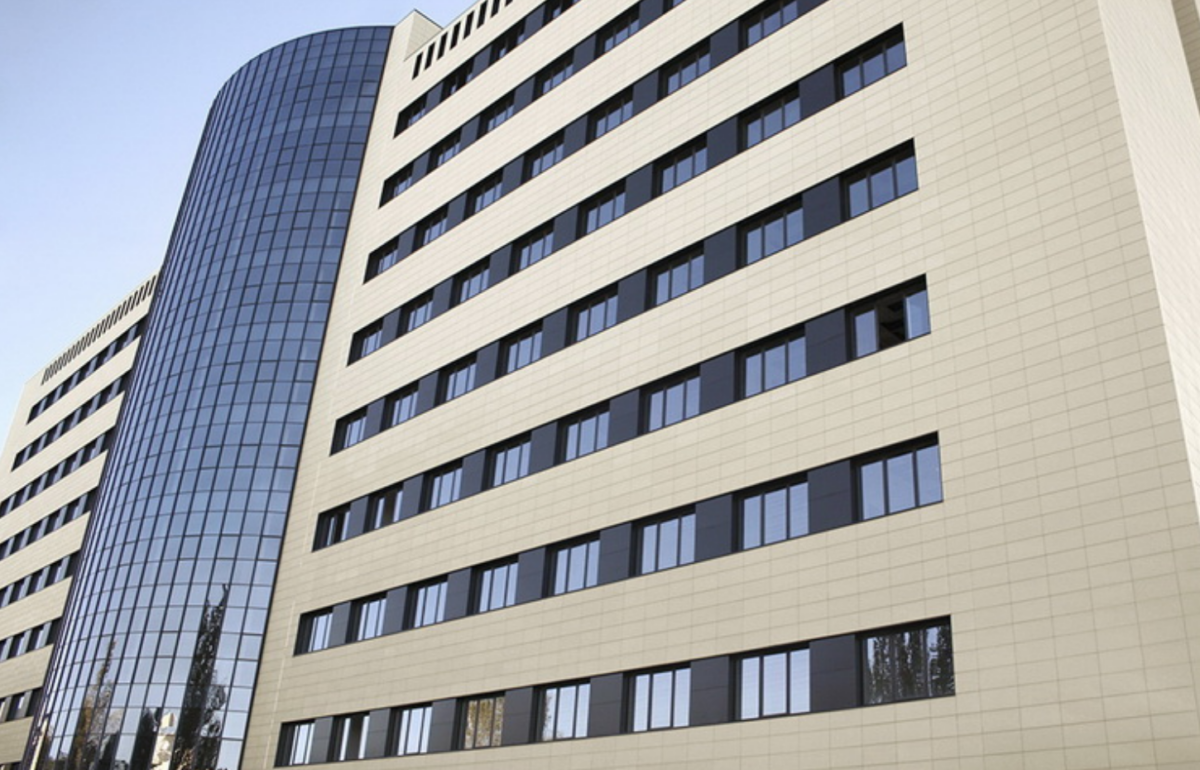

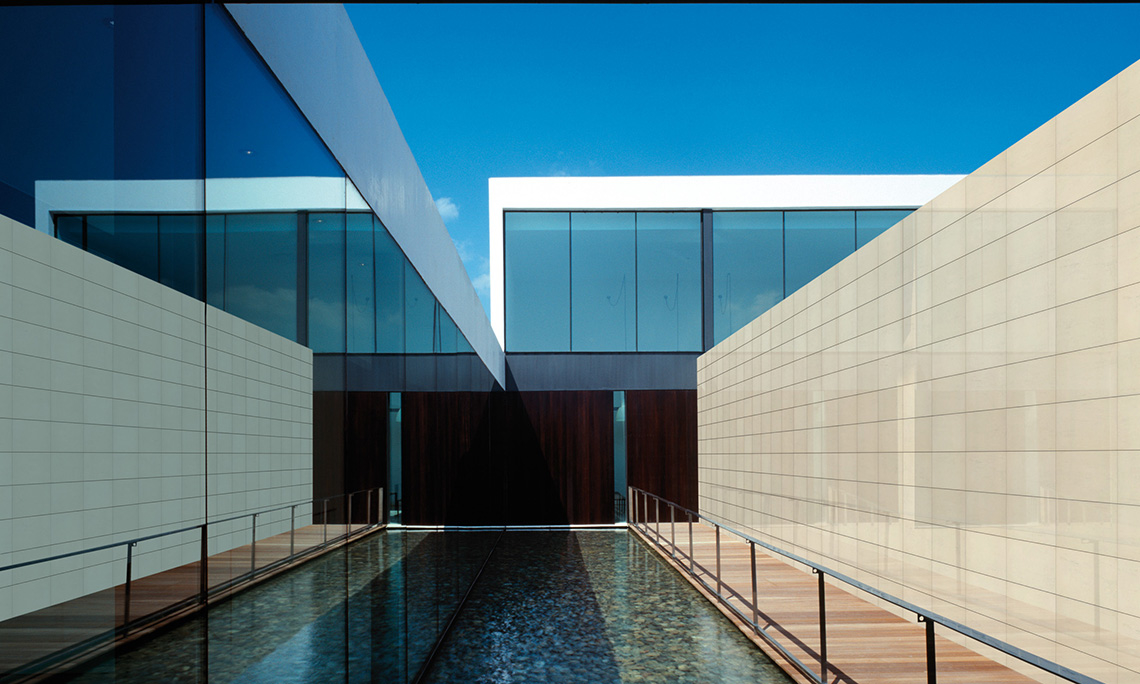

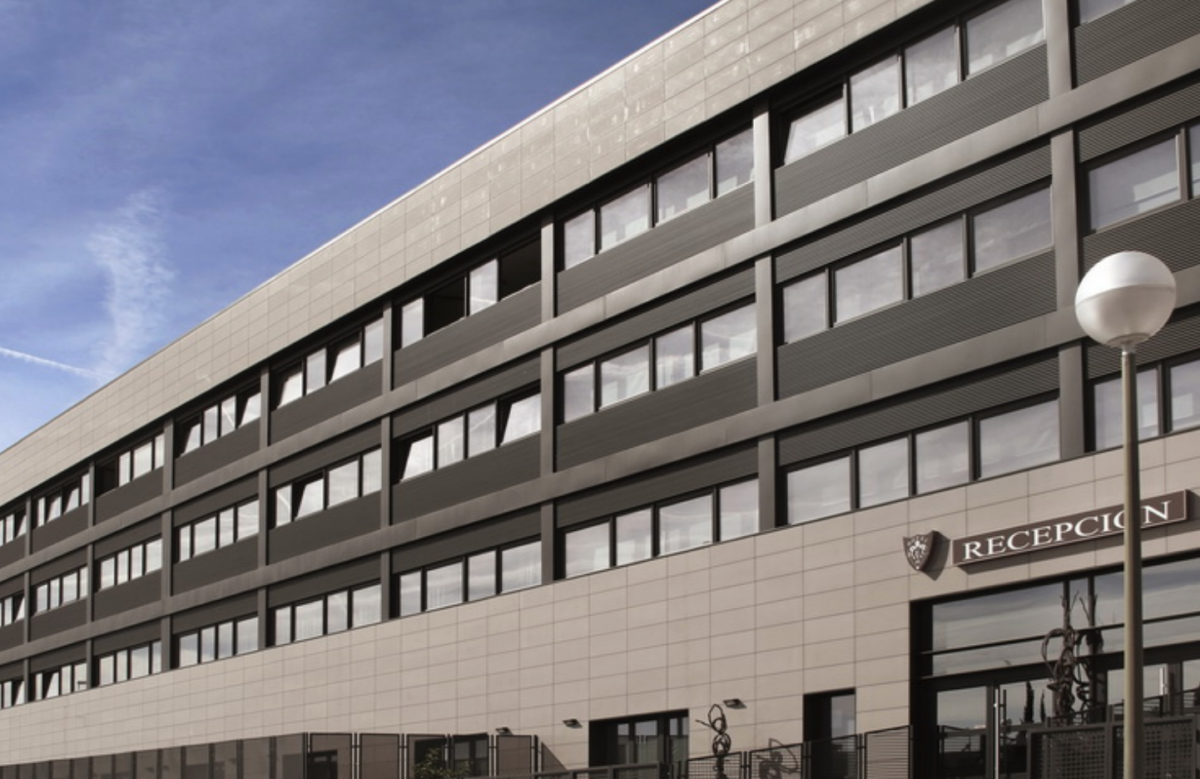

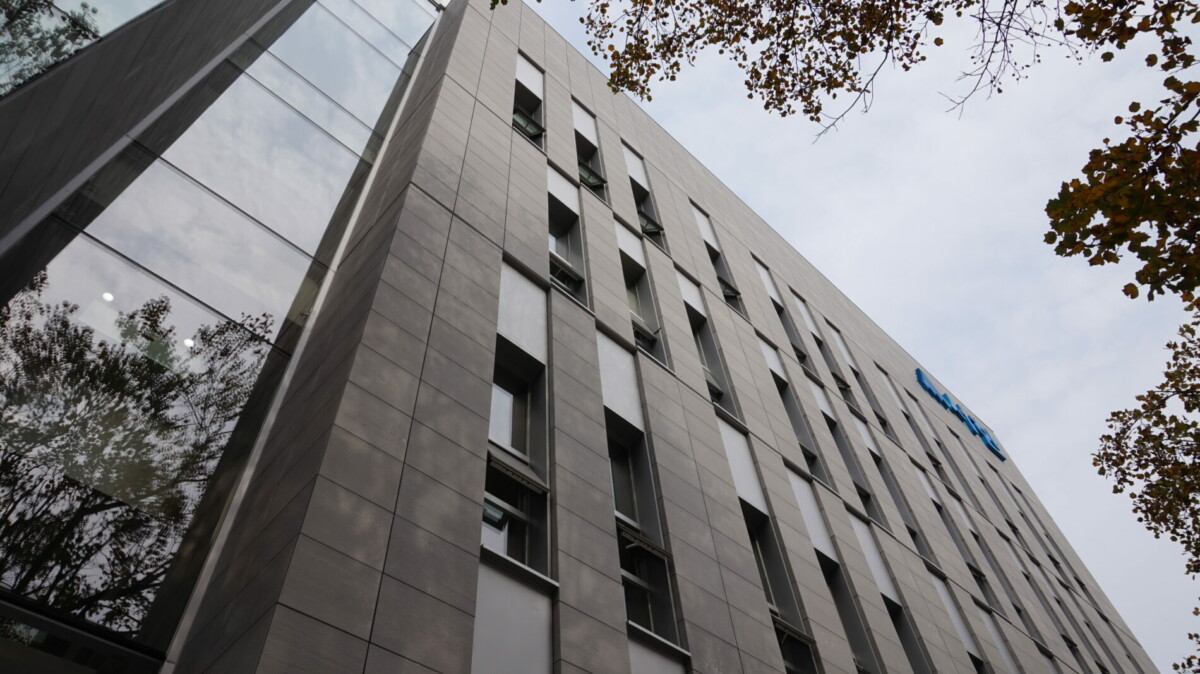

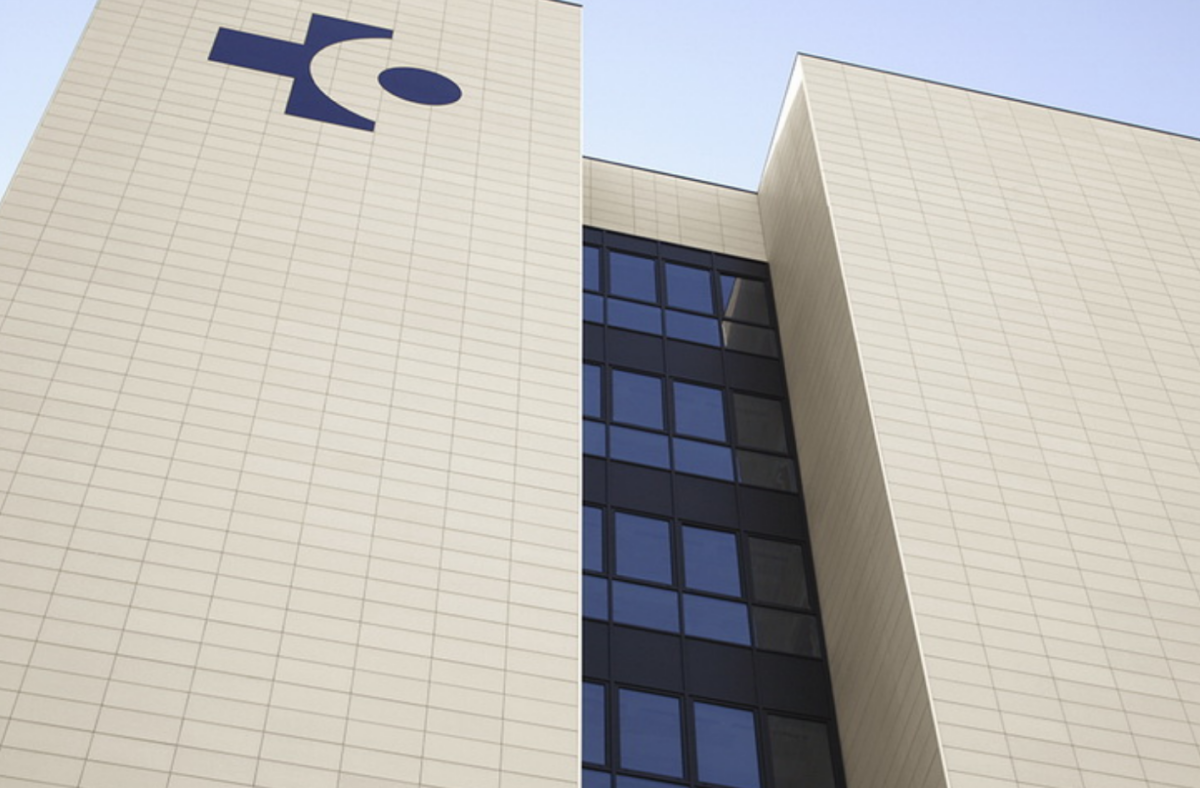

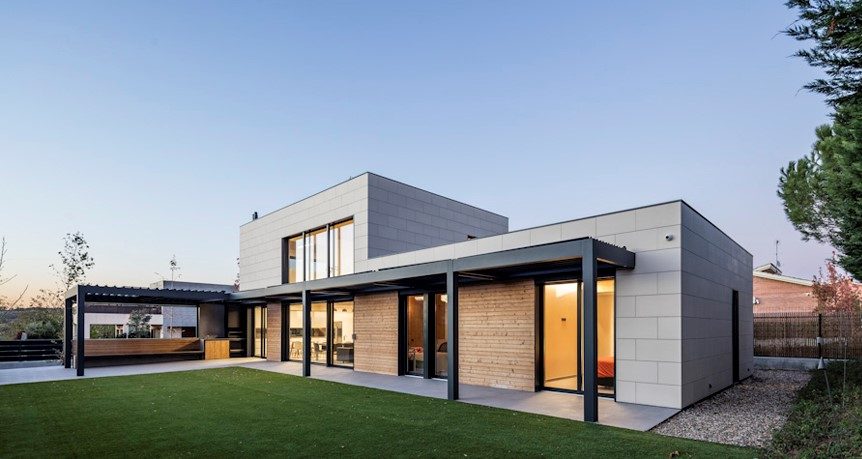

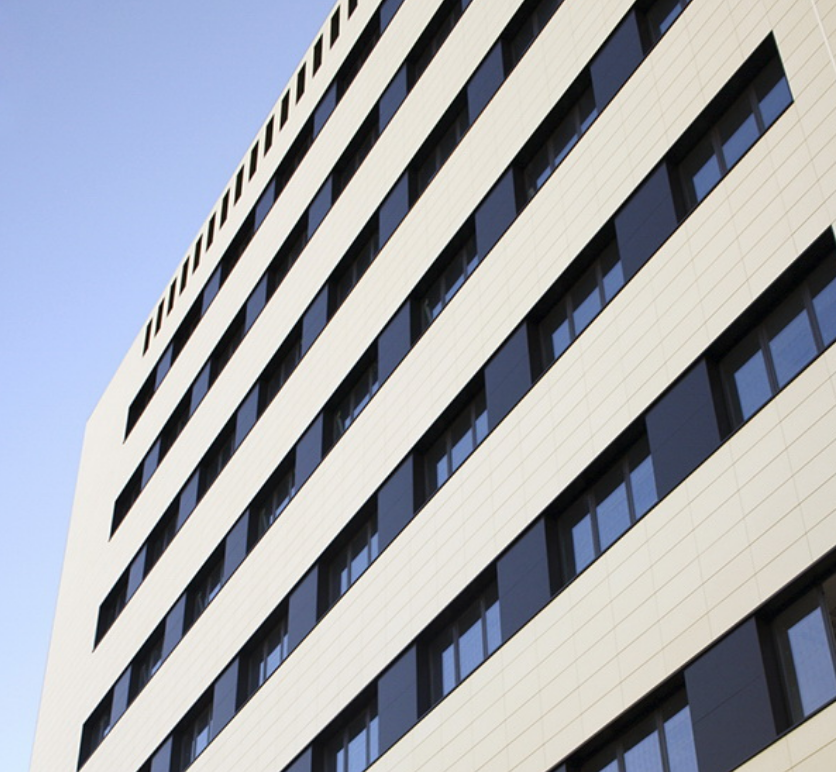

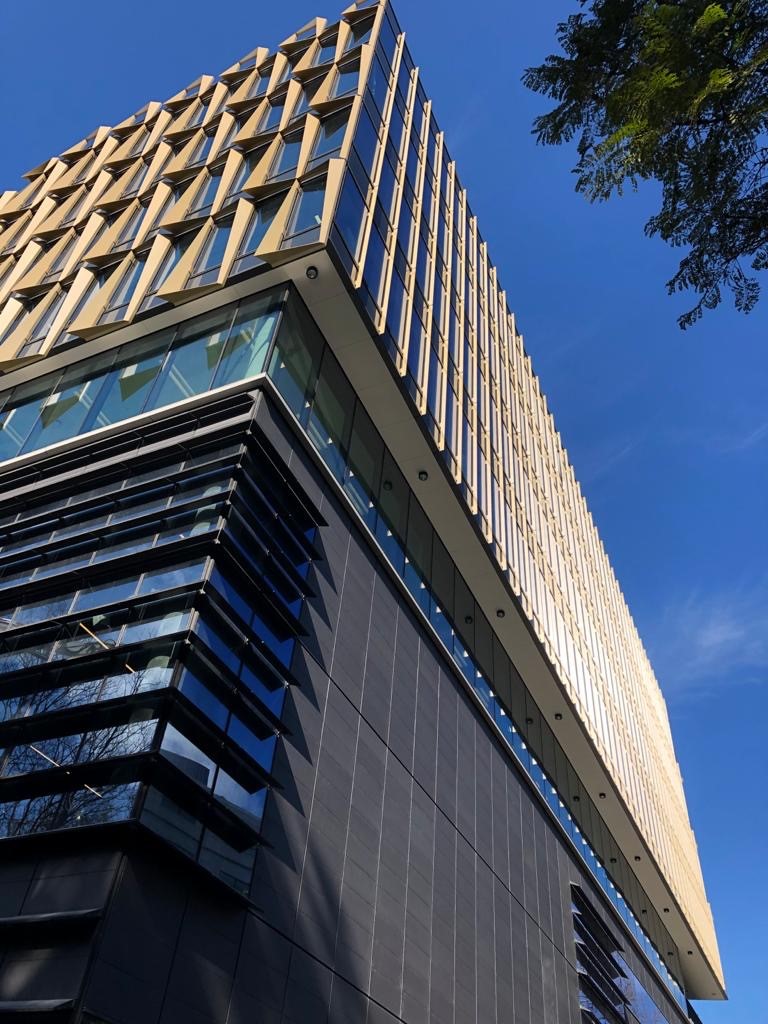

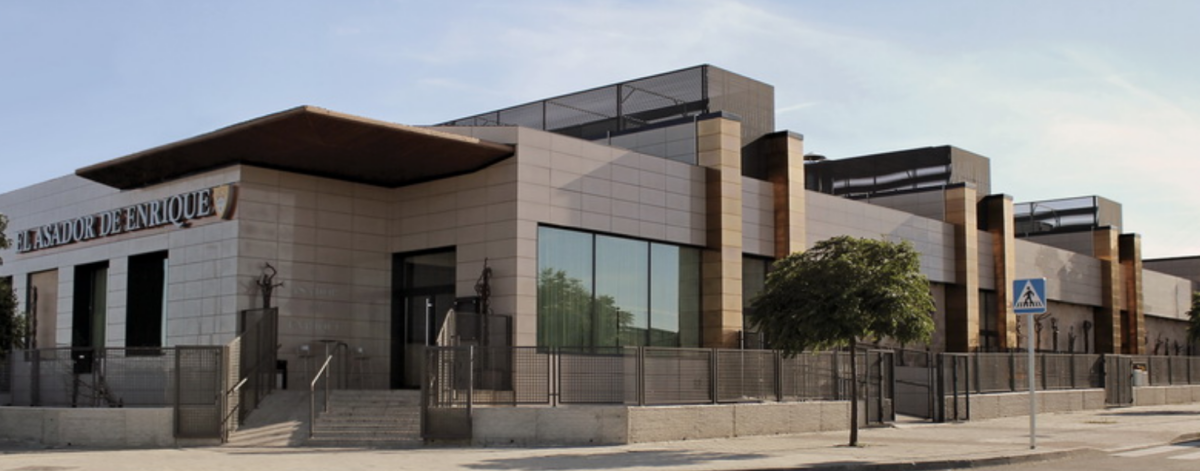

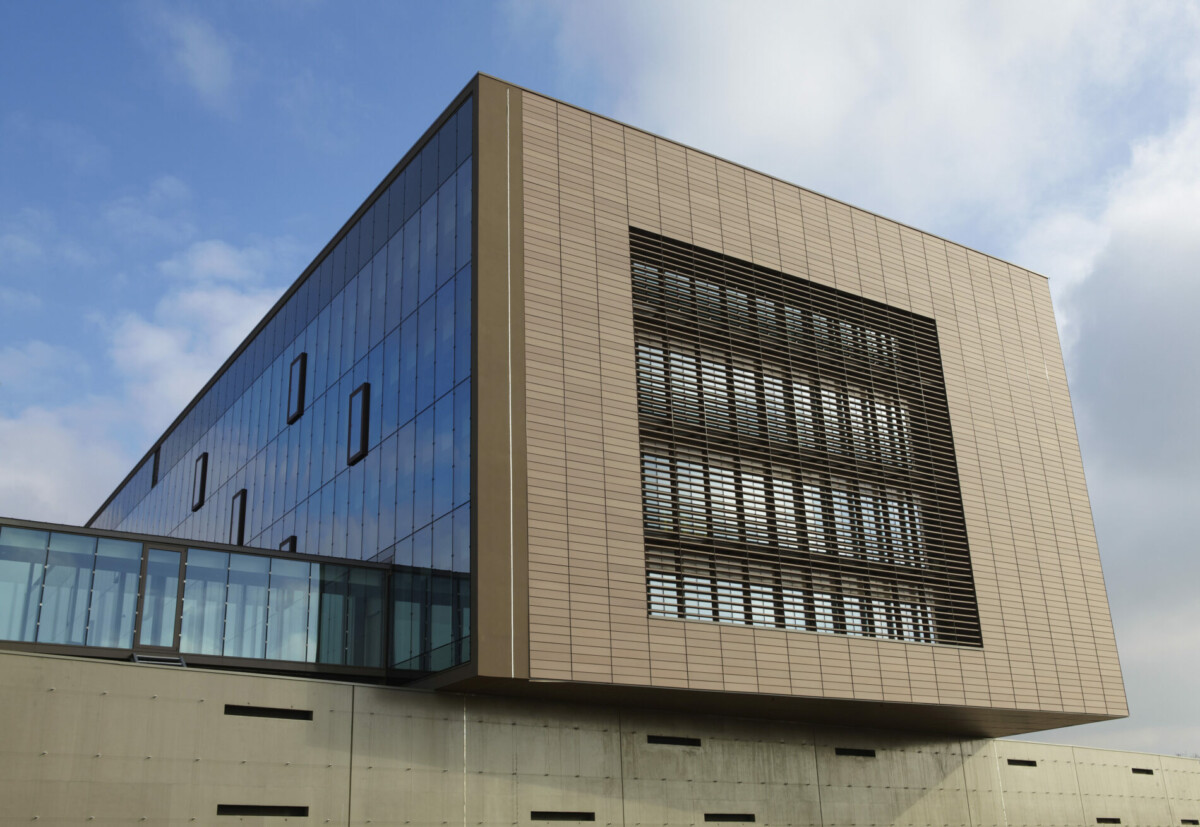

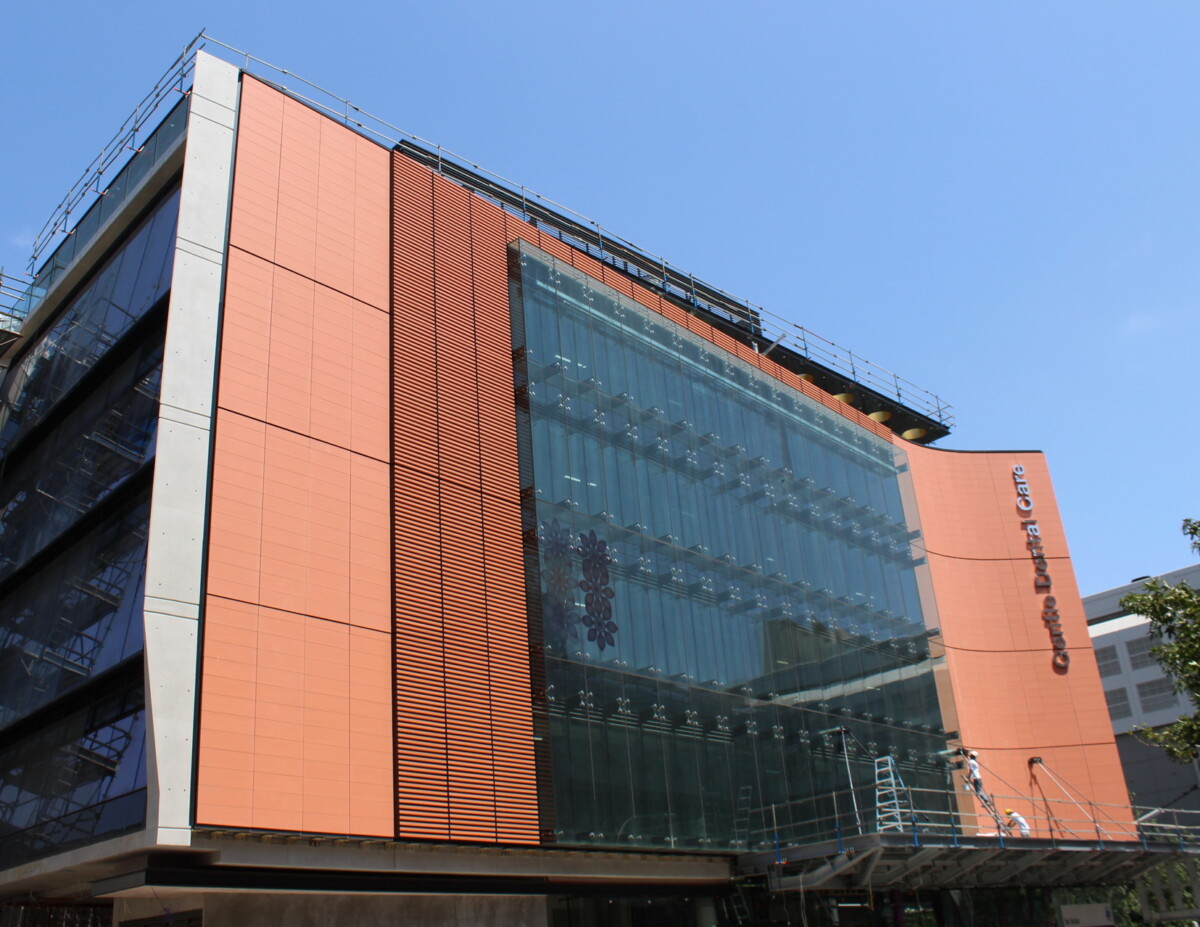

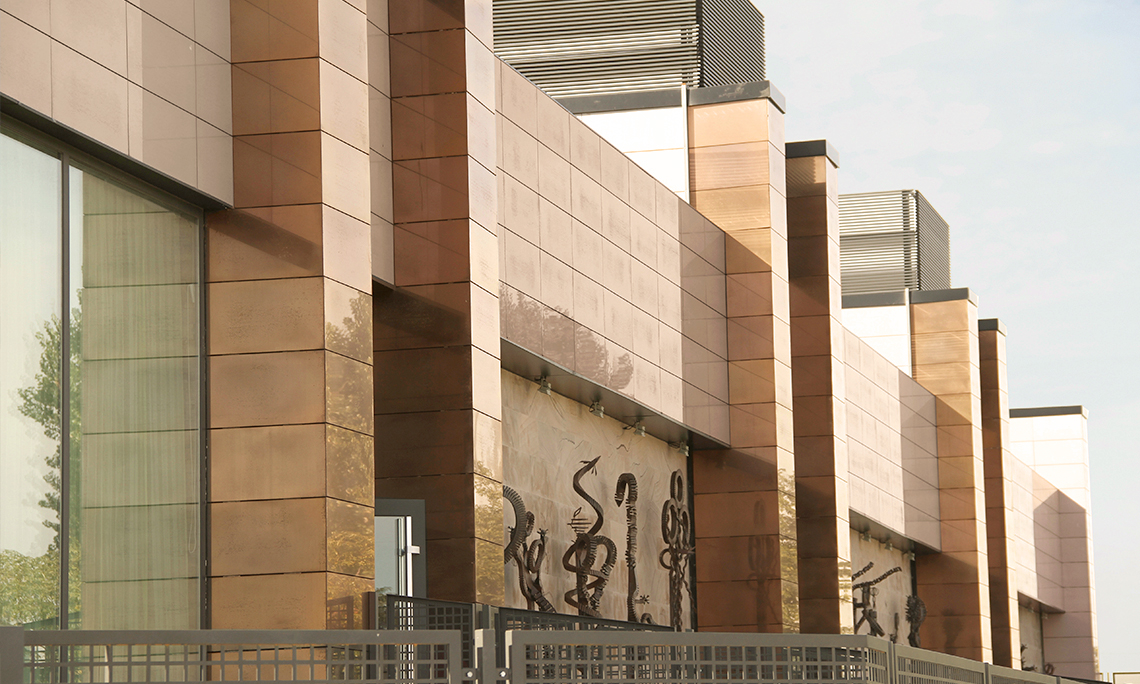

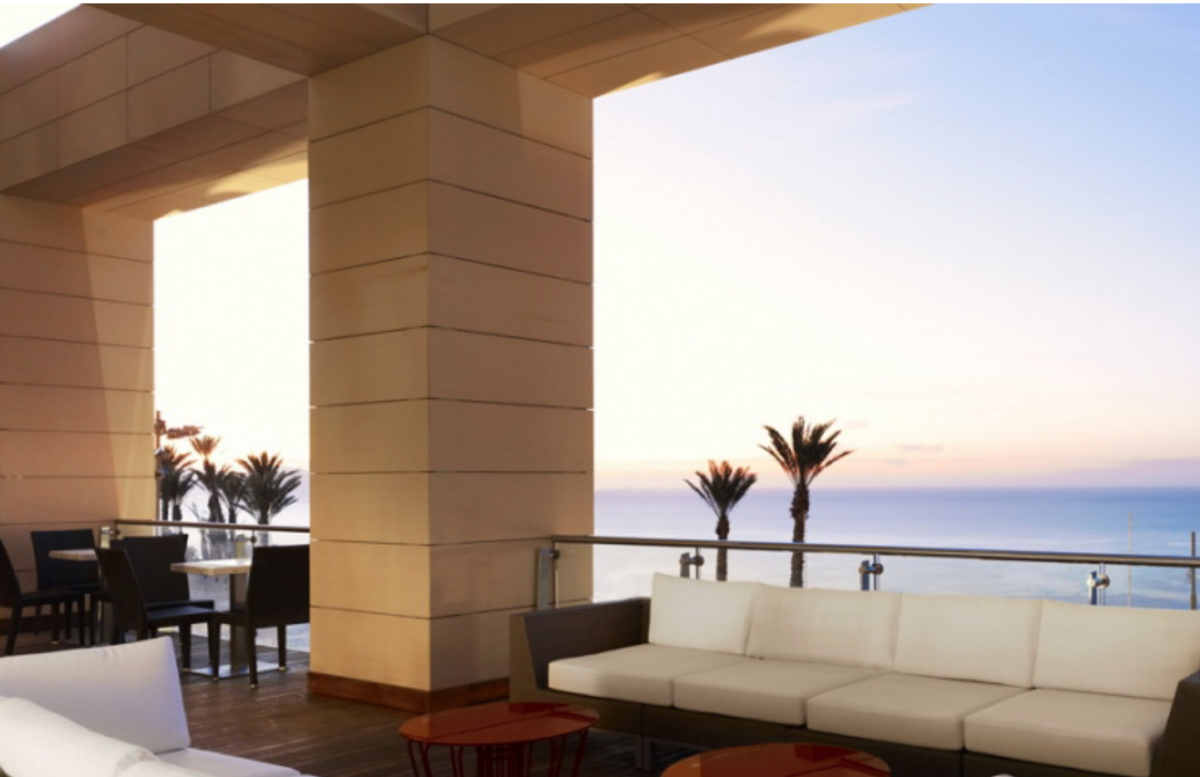

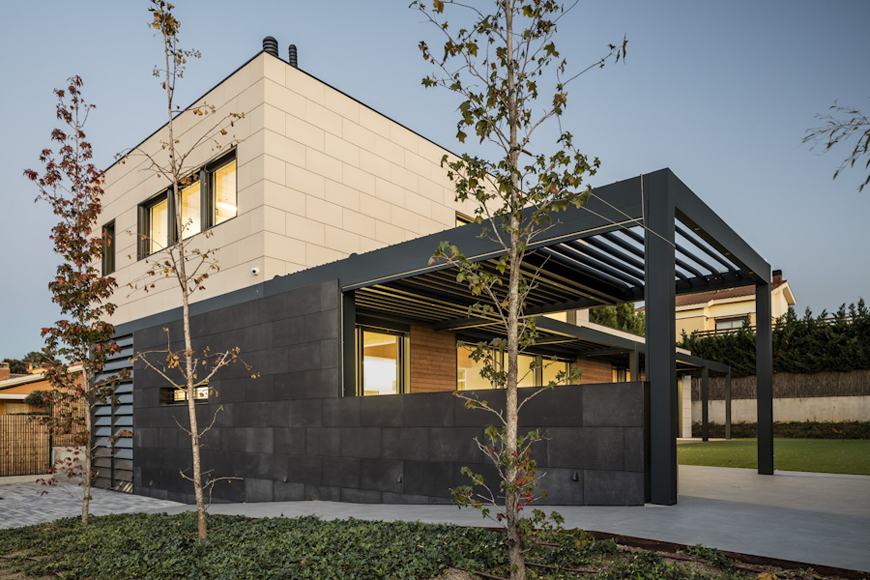

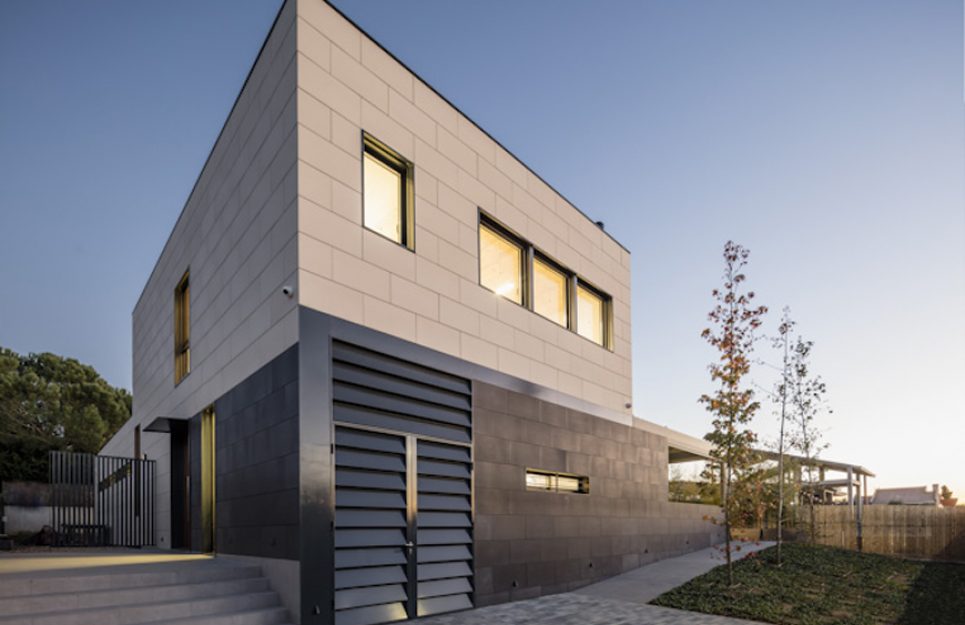

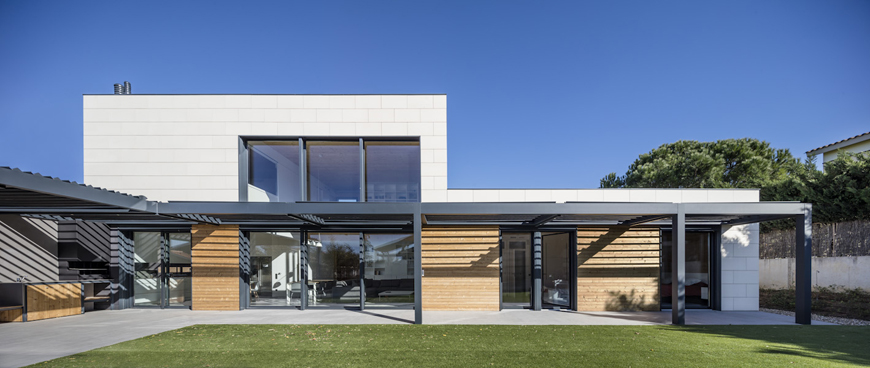

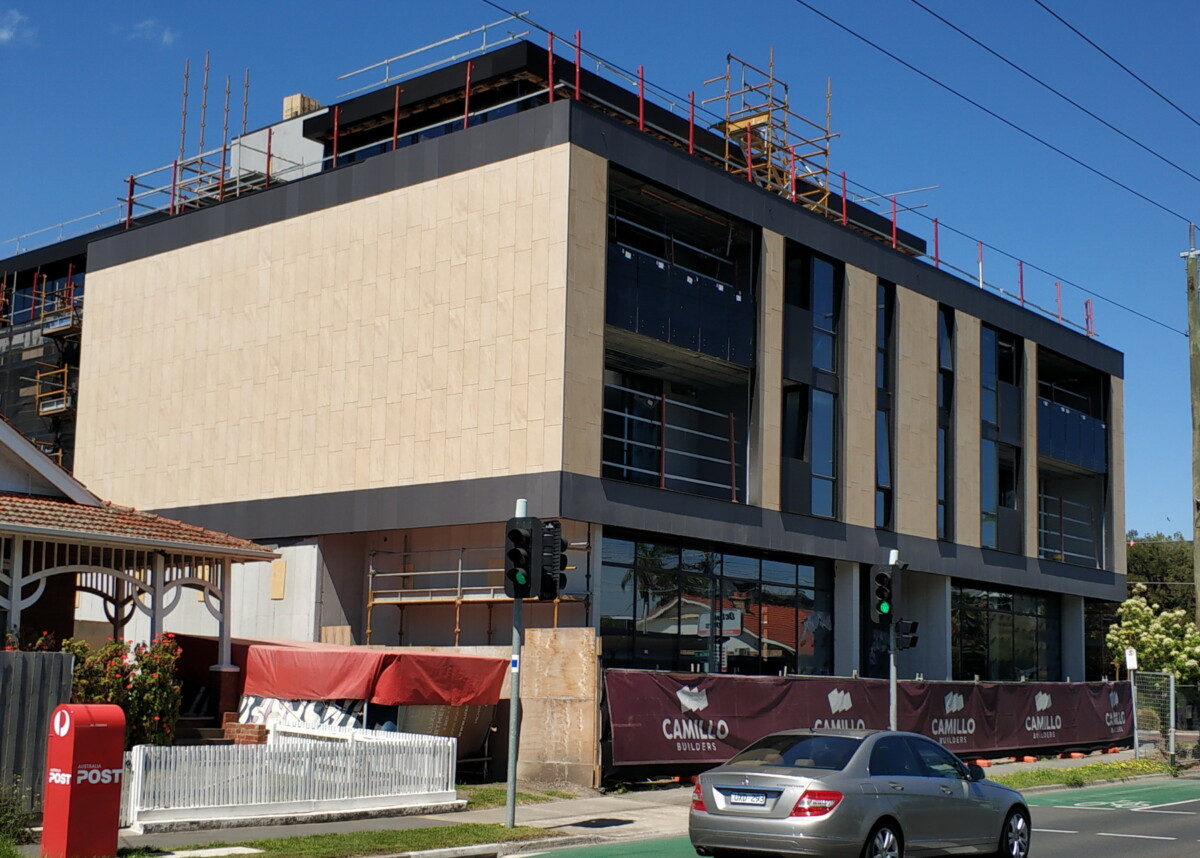

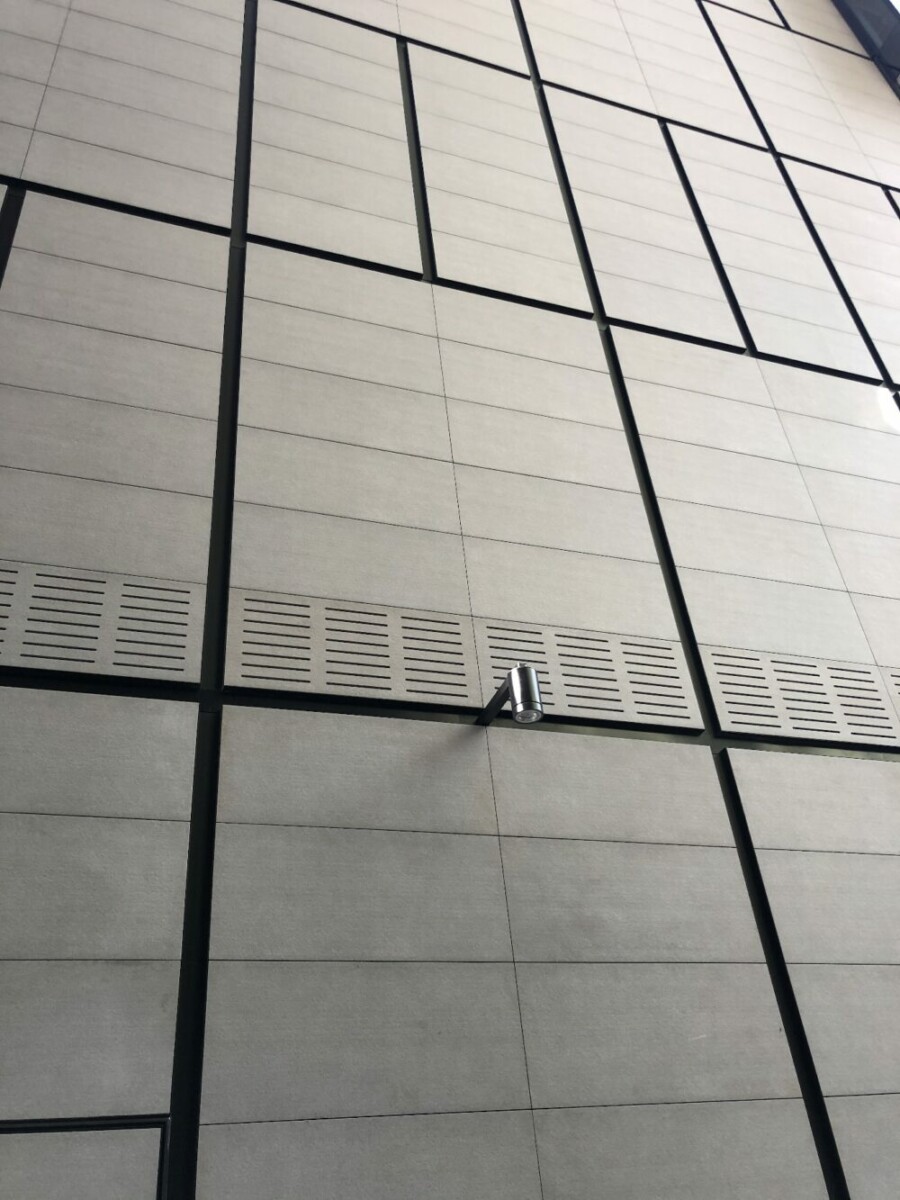

Frontek
Frontek facade cladding panels are extruded ceramics in vitrified porcelain that have excellent technical attributes for the cladding of facades: extremely hard, light in comparison to other large format ceramics, highly resistant and long-lasting, with low water absorption and excellent performance against weather and the most demanding environmental conditions.

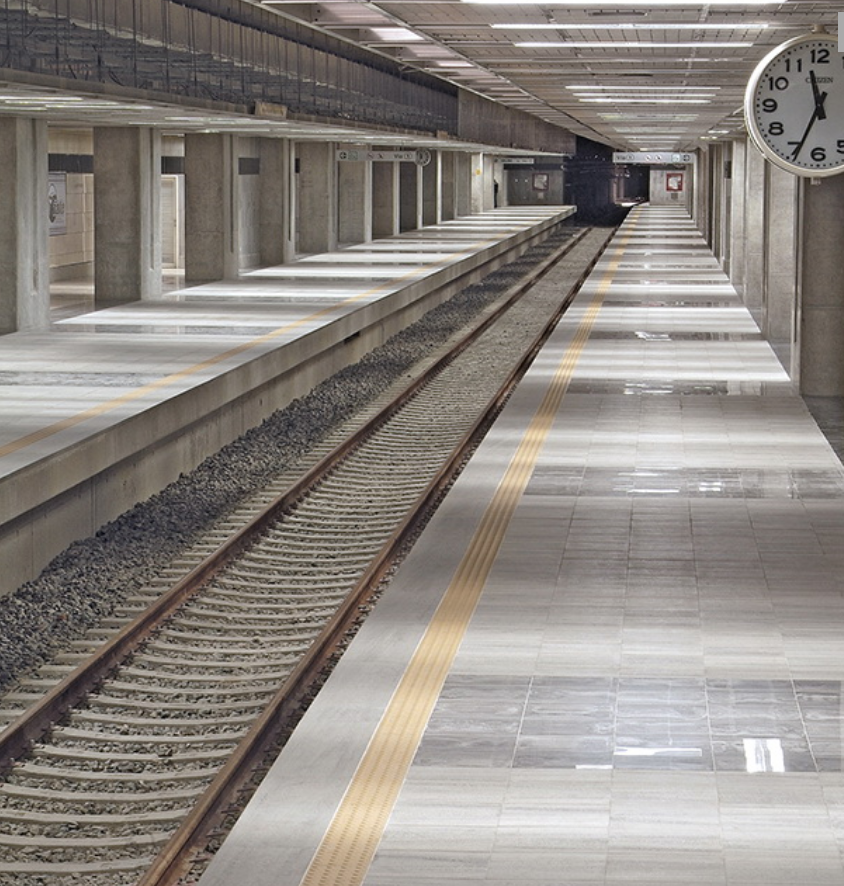

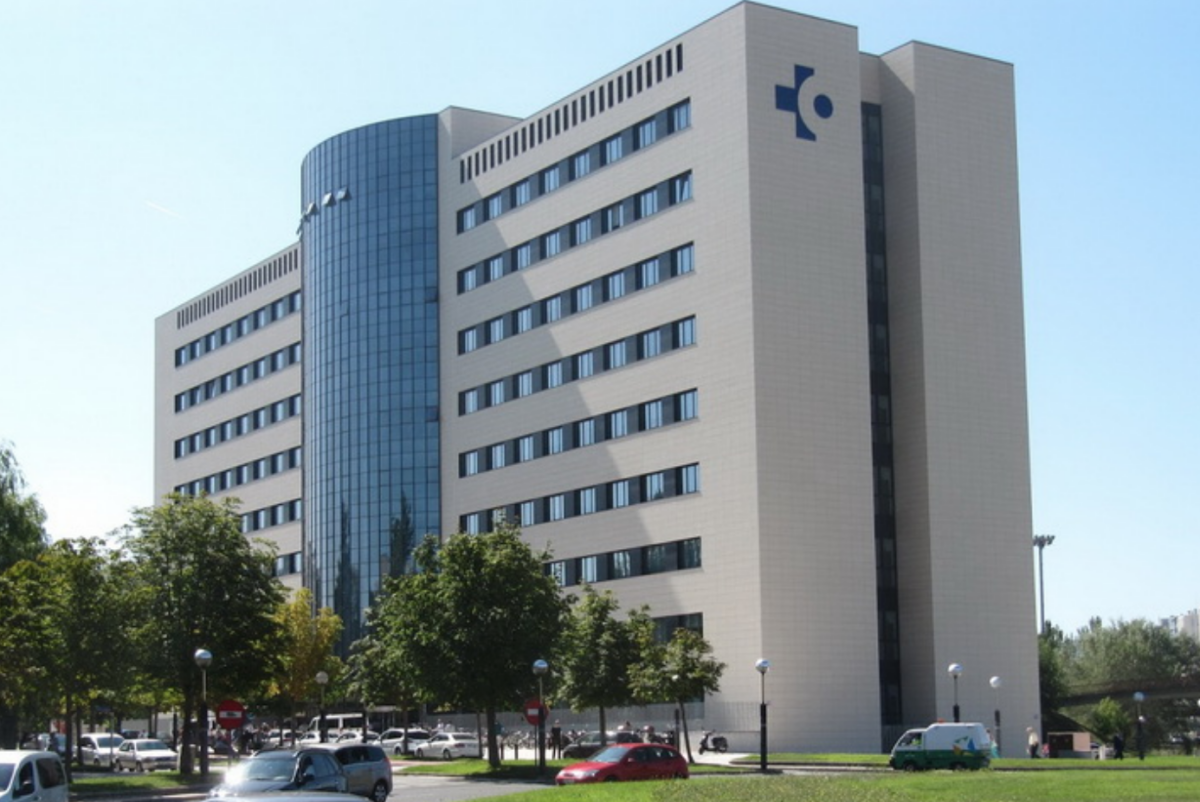

Frontek offers a wide range of products in different sizes and finishes to suit the latest trends in architecture. Different sizes, textures and colours can be combined in different ways to give each facade a unique and original design. Frontek cladding panels have been used worldwide in all construction environments. We have international project references in residential, retail, hospitality, office, industrial, public transport facilities, and hospitals.
Frontek offer a range of technical solutions for every installation from the simplest to the most demanding. We have installation system’s for every supporting structure & requirement. Frontek is manufactured by “Greco Gres Internacional whose origins date back to 1940. The experience gained over decades in the manufacturing of high-tech ceramic products, has positioned their companies nationally and internationally as a benchmark of quality in the manufacturing of ventilated facade systems composed of extruded porcelain panels.

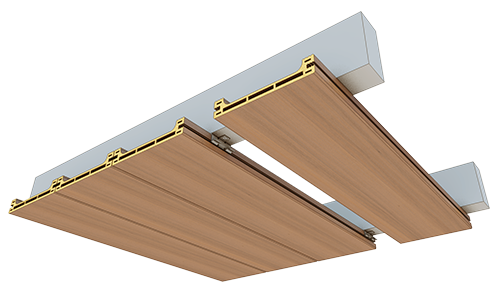

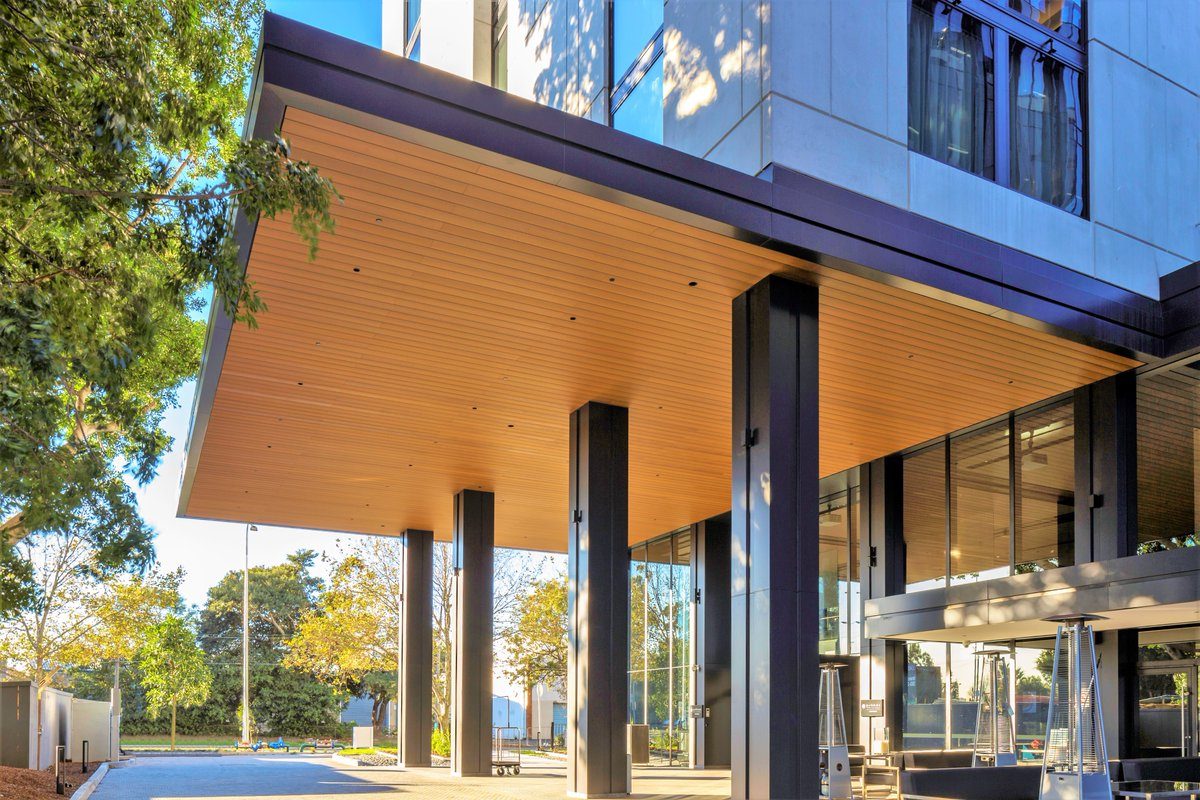

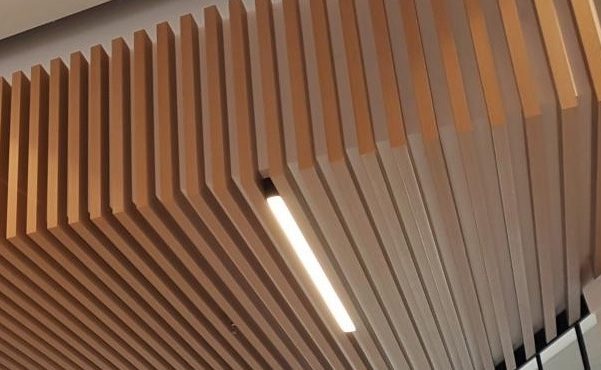

Composite Timber Ceilings – Innoceil / Inowood
Innoceil systems offer the ideal timber look ceiling solution for any commercial or residential application.
Our systems not only create instant sophistication as an architectural feature, but they are also lightweight and therefore cost-effective as an alternative to natural timber. Most of the product can also be produced in a higher fire performance grade for commercial interior solutions. As the fire retardant properties are extruded in the material there is no danger of this being compromised after time.
FLEXIBILITY: Innoceil systems not only deliver a distinct architectural look, but it also has a high acoustic performance rating to provide the ultimate sound quality and external noise reduction capabilities.
DESIGNINTENT: INNOWOOD Ceiling Systems are designed to eliminate the unsightly appearance of exposed screws, nails, holes or surface fixings resulting in a clean, smooth and superior finish.
CAPABILITY: Innoceil systems can incorporate a unique acoustic material designed to enhance sound absorption and reduce sound transmission, making it the ideal ceiling solution.
BENEFITS: Easy of installation, the ability to order to length and the lightweight nature of the material as all key factors in saving cost while not compromising on appearance.
INNOWOOD IS
- 100% Recyclable.
- Durable and Lightweight.
- FireResistant.
- Flexible in Design.
- Exhibits the same natural beauty as natural timber.
For more details click here.

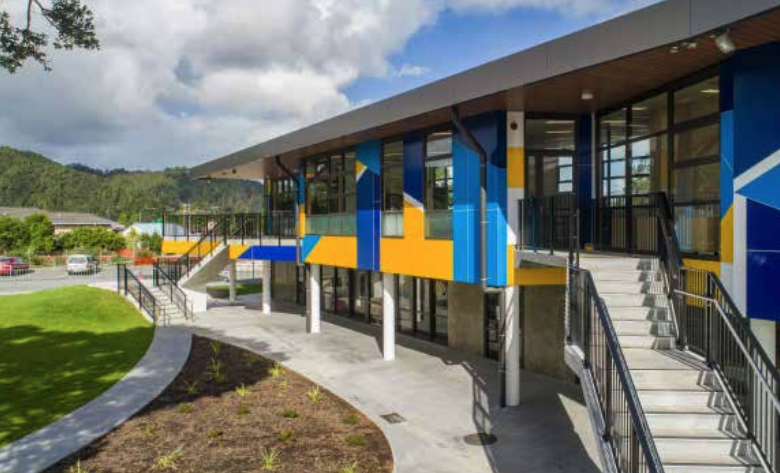

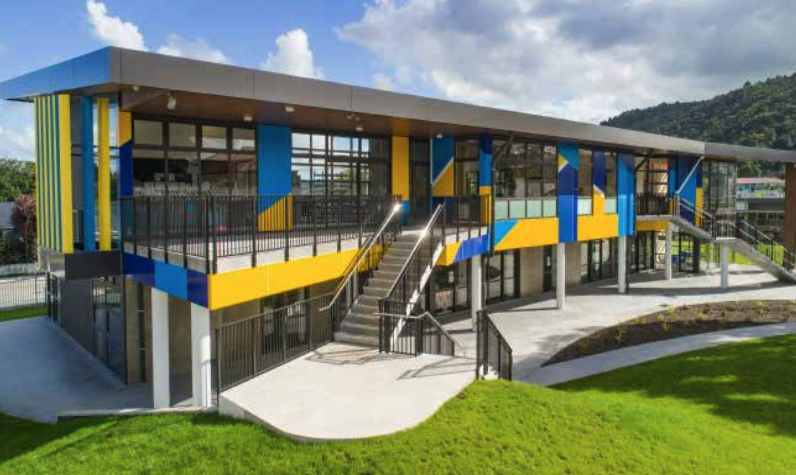

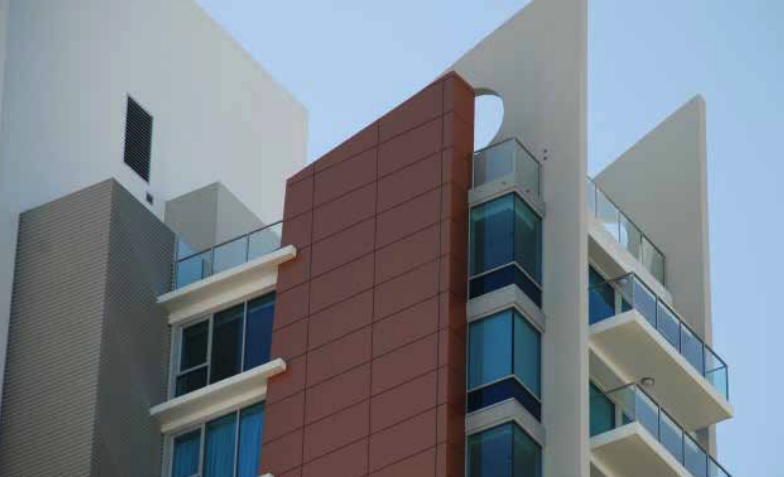

Indurabond
LIGHTWEIGHT METAL COMPOSITE CLADDING PANEL, IDEAL FOR EXTERNAL FACADES, FASCIA & SUN BLADES.
Indurabond Aluminium Composite Panel (ACP), is Paneltec’s highly versatile façade cladding panel, offering excellent durability and extreme weather resistance. It is ideal for façades, fascia, soffits, awnings and many more applications such as standing seam cladding and balustrades.

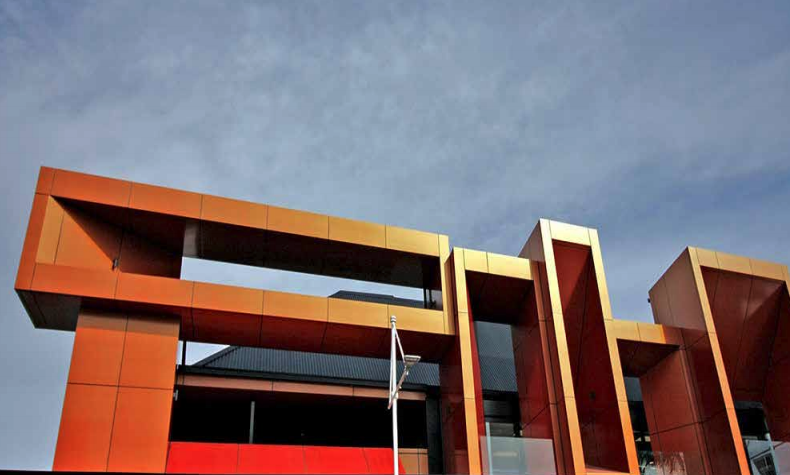

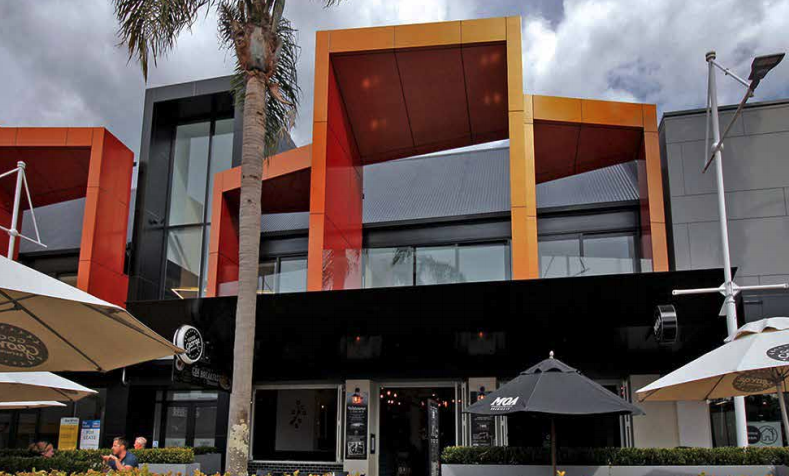

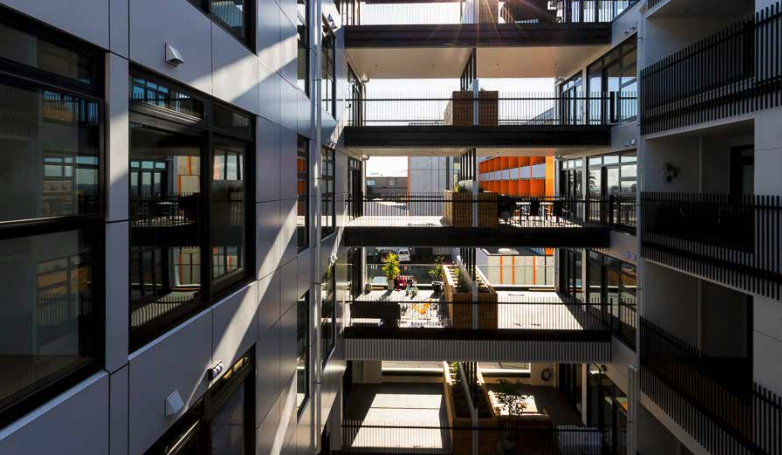

Induracore G2
Australia’s Leading Non-Combustible Panel
THE ONLY ALUMINIUM LAMINATED PANEL IN NEW ZEALAND THAT HAS BEEN EXTENSIVELY TESTED TO THE BS 8414 TEST TO THE BR135 STANDARD
Induracore G2 appears exactly the same as traditional aluminium composite panel (ACP), however the advanced technology of the core is constructed from a complete aluminium stamped structure rather than from a combustible material. With no composite material present, Induracore G2 is renamed as a Aluminium Laminated Panel (ALP).

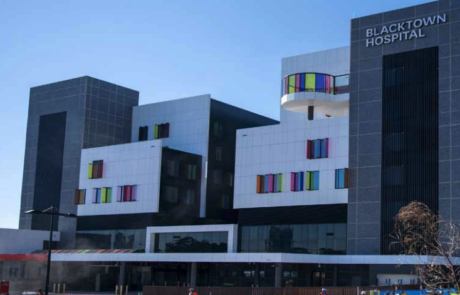

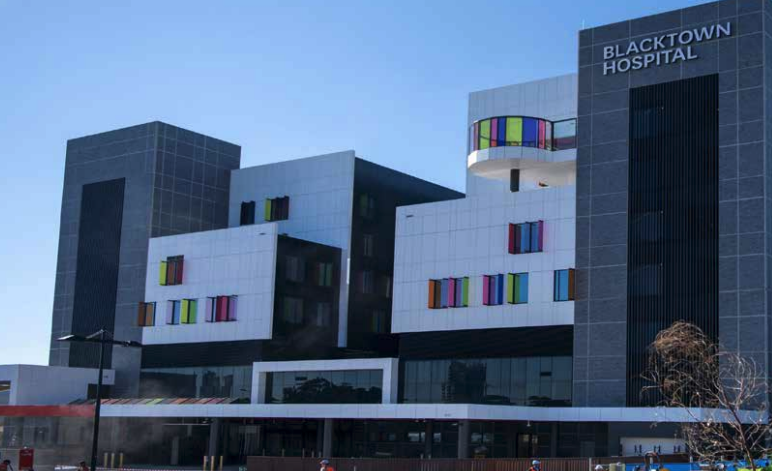

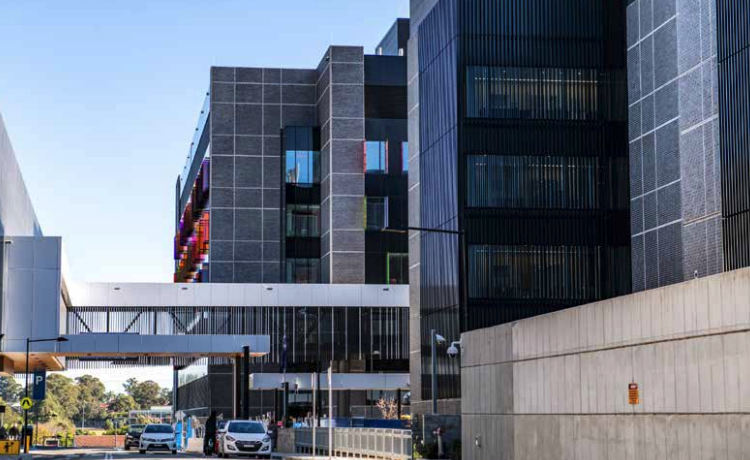

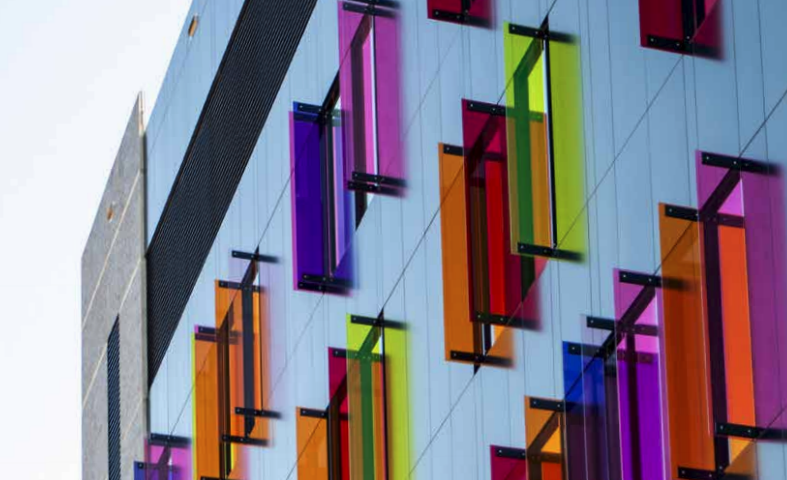

Induraplate
INDURAPLATE IS AN 100% NON-COMBUSTIBLE SOLID ALUMINIUM PANEL SOLUTION.
Induraplate is a durable, high impact resistant, solid panel which can be curved and rolled. Induraplate features the same PVDF coating system as Paneltec’s Induracore G2; well proven for its superior quality, extensive colour range and integrity; unlike traditional 3mm powder-coated aluminium.

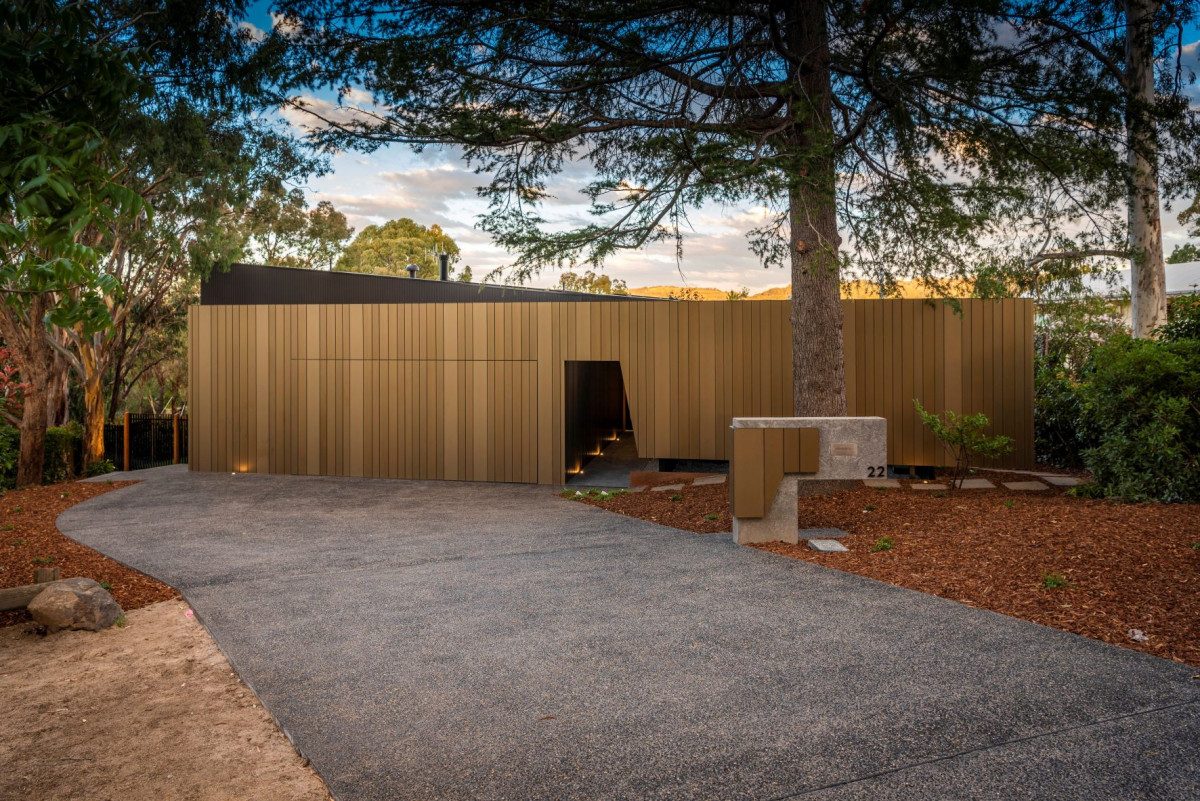

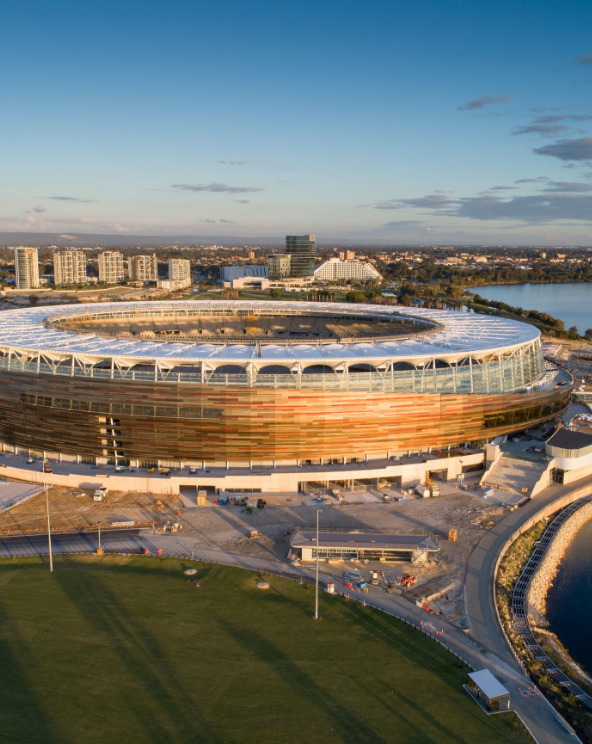

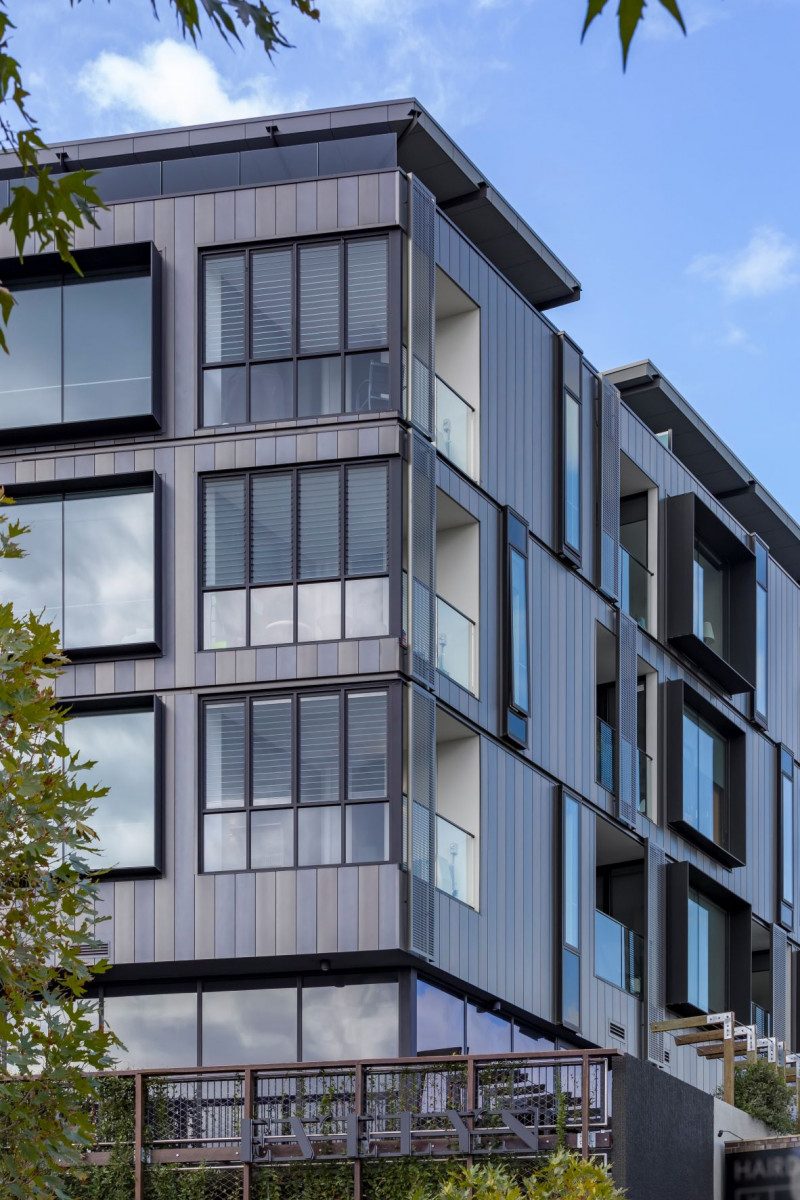

Stryum
Stryum is a premier interlocking solid aluminium cladding system. Built to endure and styled to inspire.
Combining limitless design flexibility and an unmatched level of compliance testing, Stryum is the perfect choice for designers and builders.
Stryum is our premier interlocking solid aluminium cladding system. Built to endure and styled to inspire. This panel comes in an unlimited range of powder coat finishes, and innovative textured woodgrains. It is available in three different profiles to cover all your architectural designs.
|

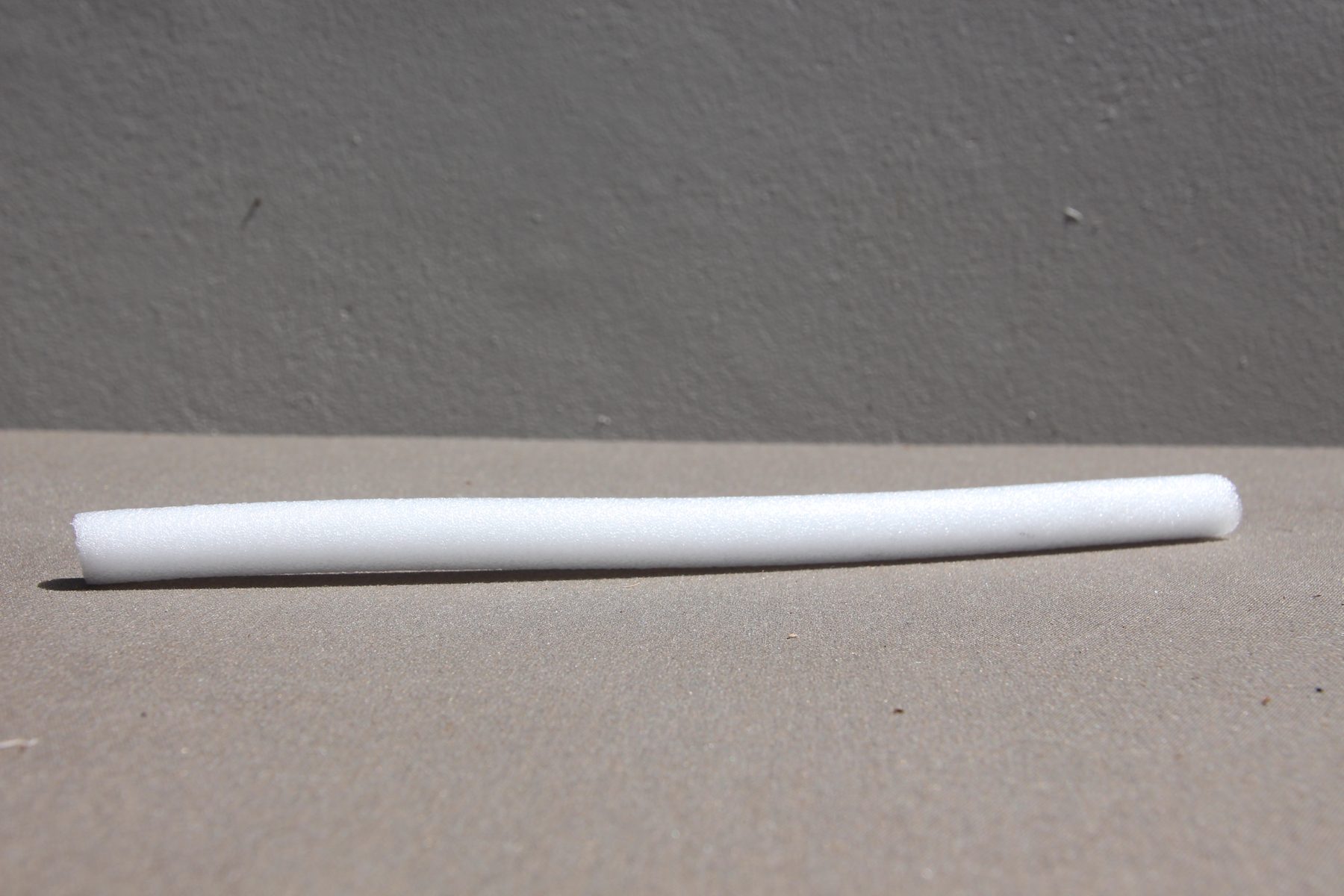

Backing Rod
We have the following sizes available…
- 10mm
- 12mm
- 15mm

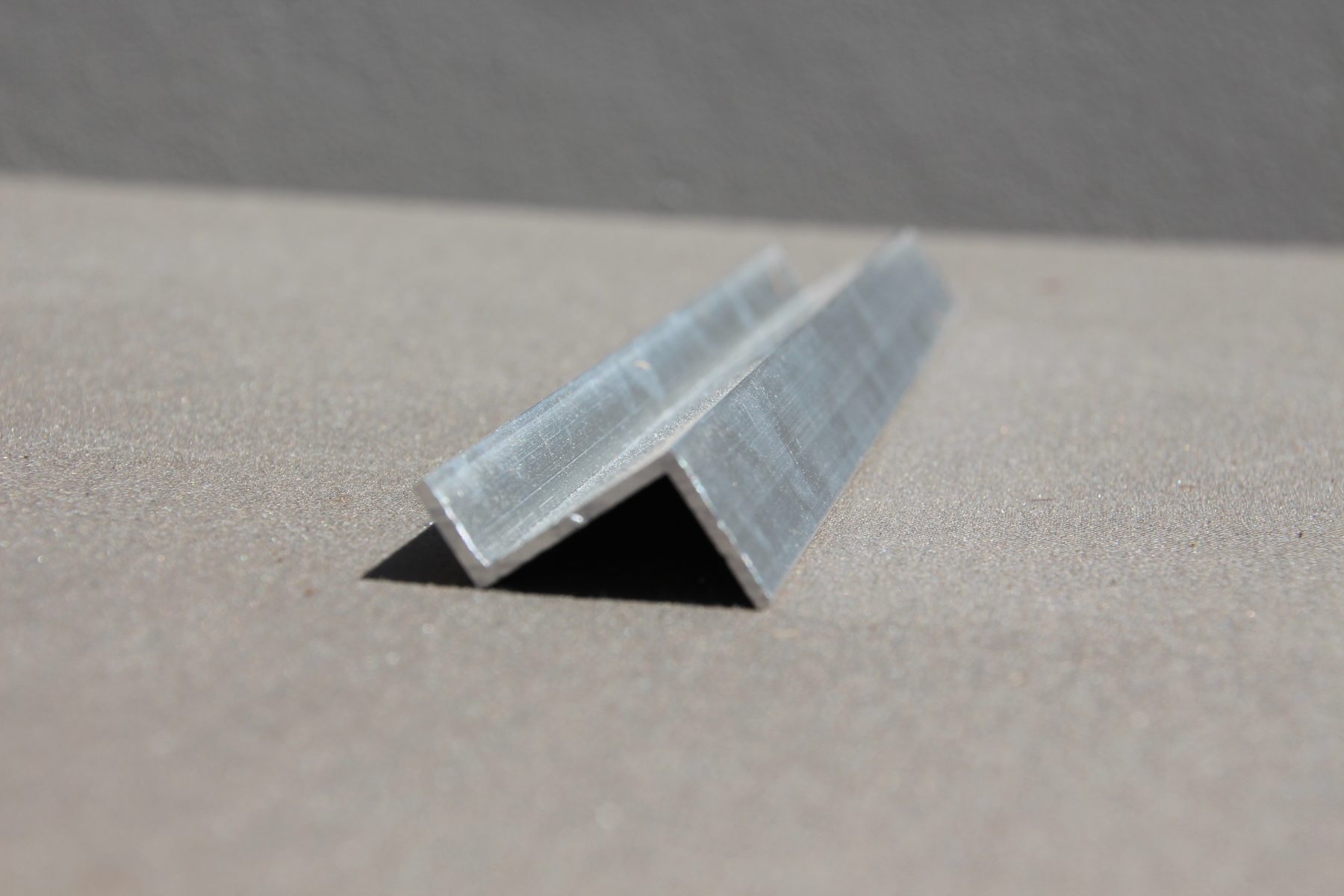

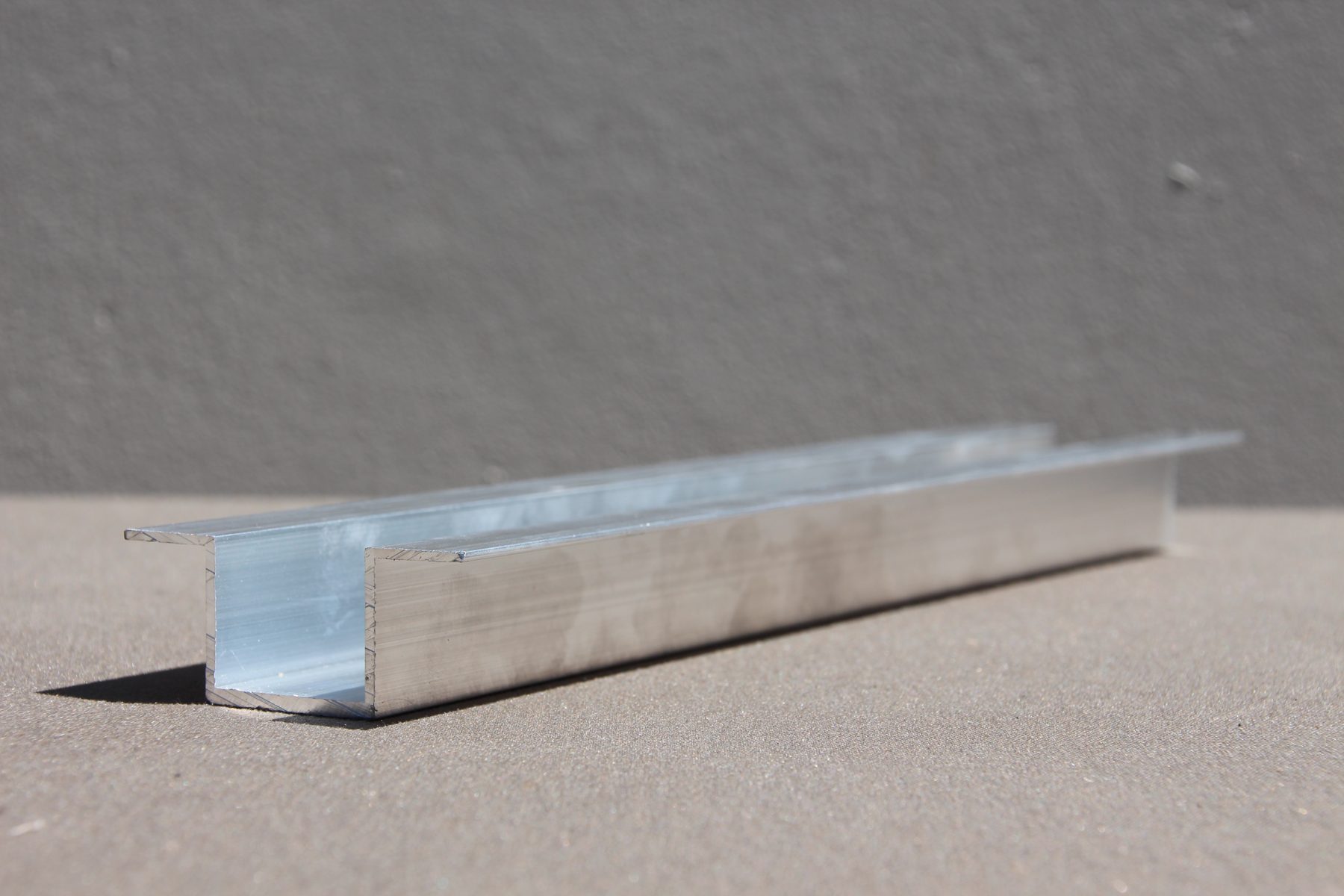

Zds
We have B & C Zds available in 6m lengths.
Top hats
We have aluminium and cavity cladding, Top hats available.
Silicon
Please find below technical data sheet of the silicone we use for our jobs.

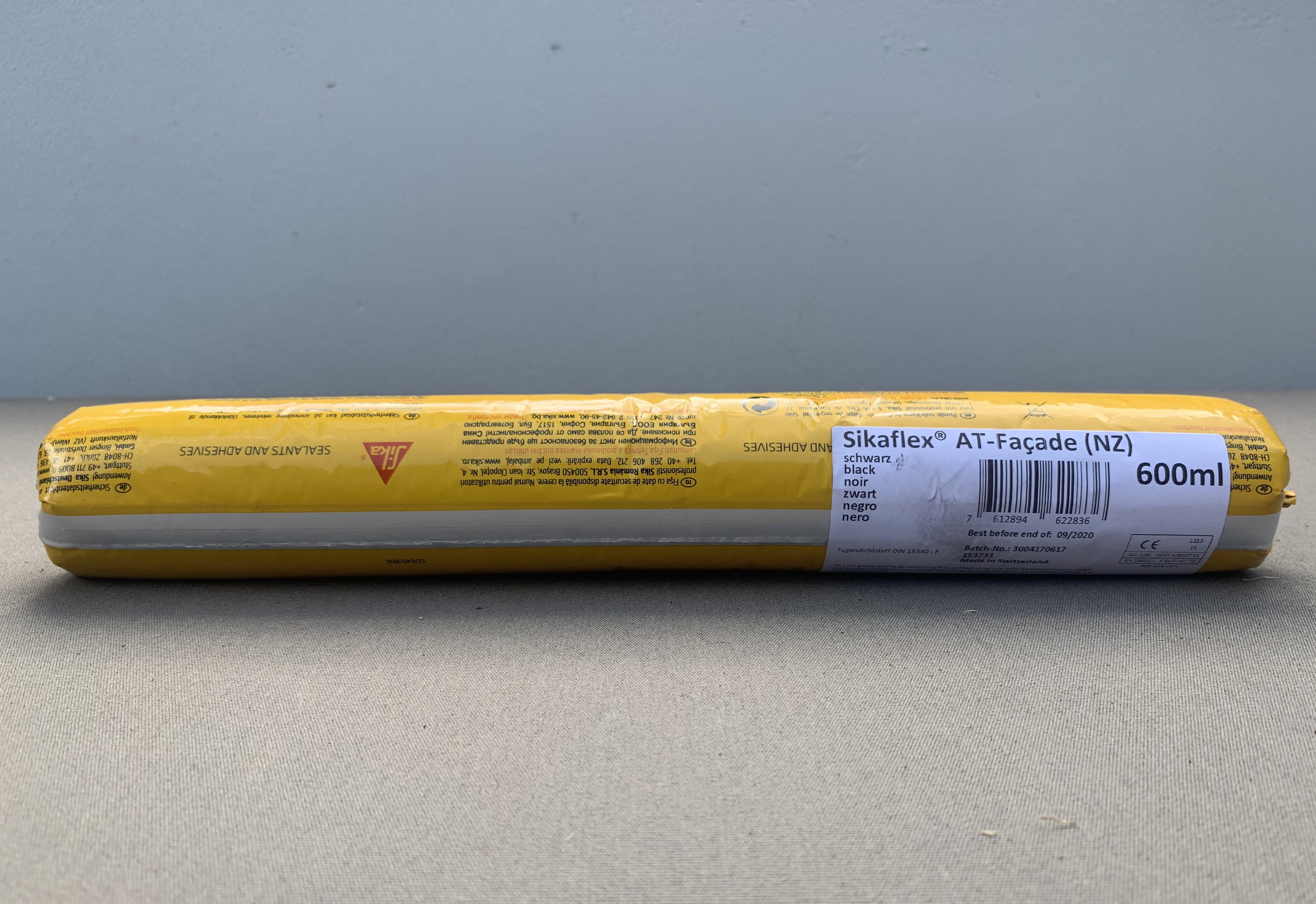

Sikaflex AT Façade
Maxilam Sabre Seal MS Façade
